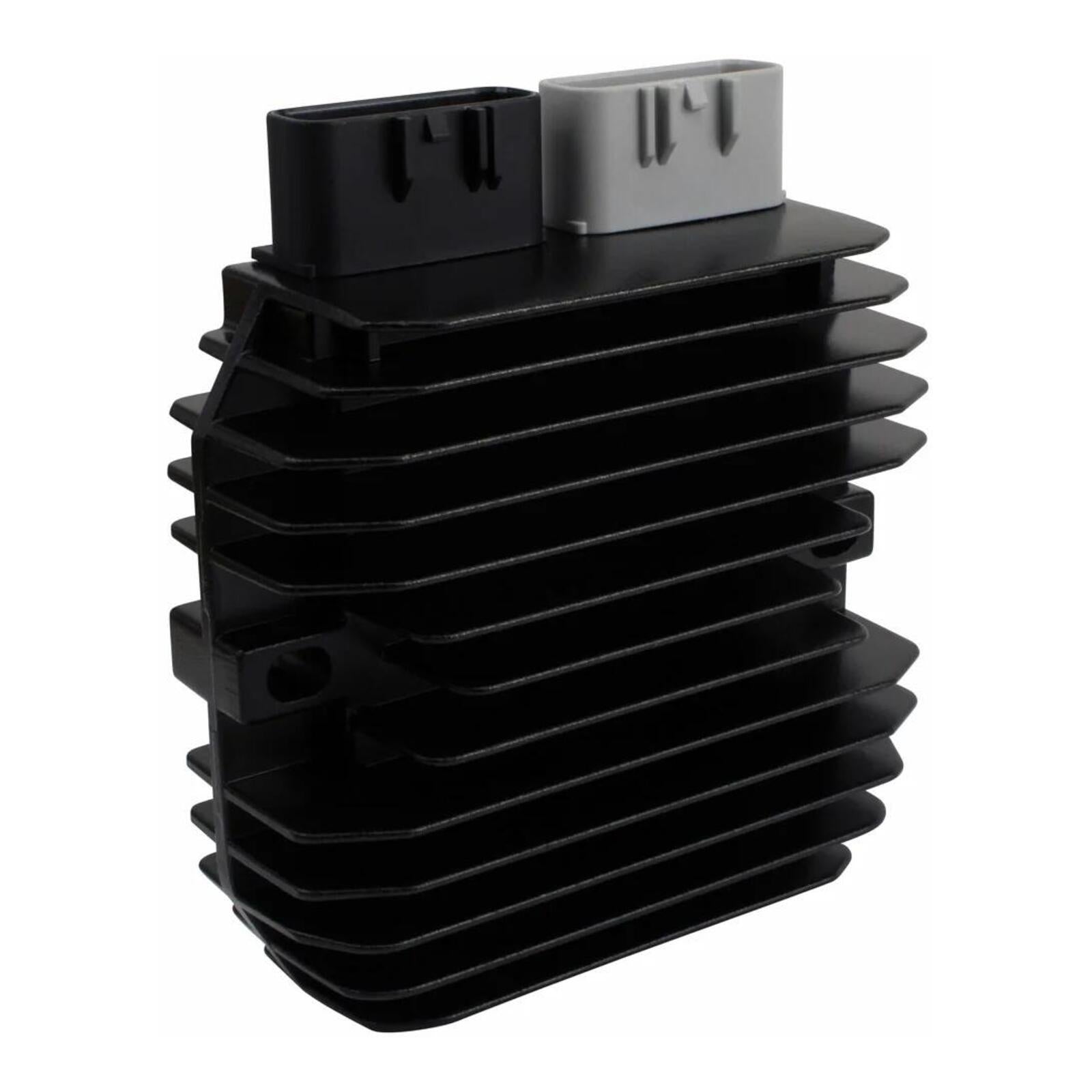

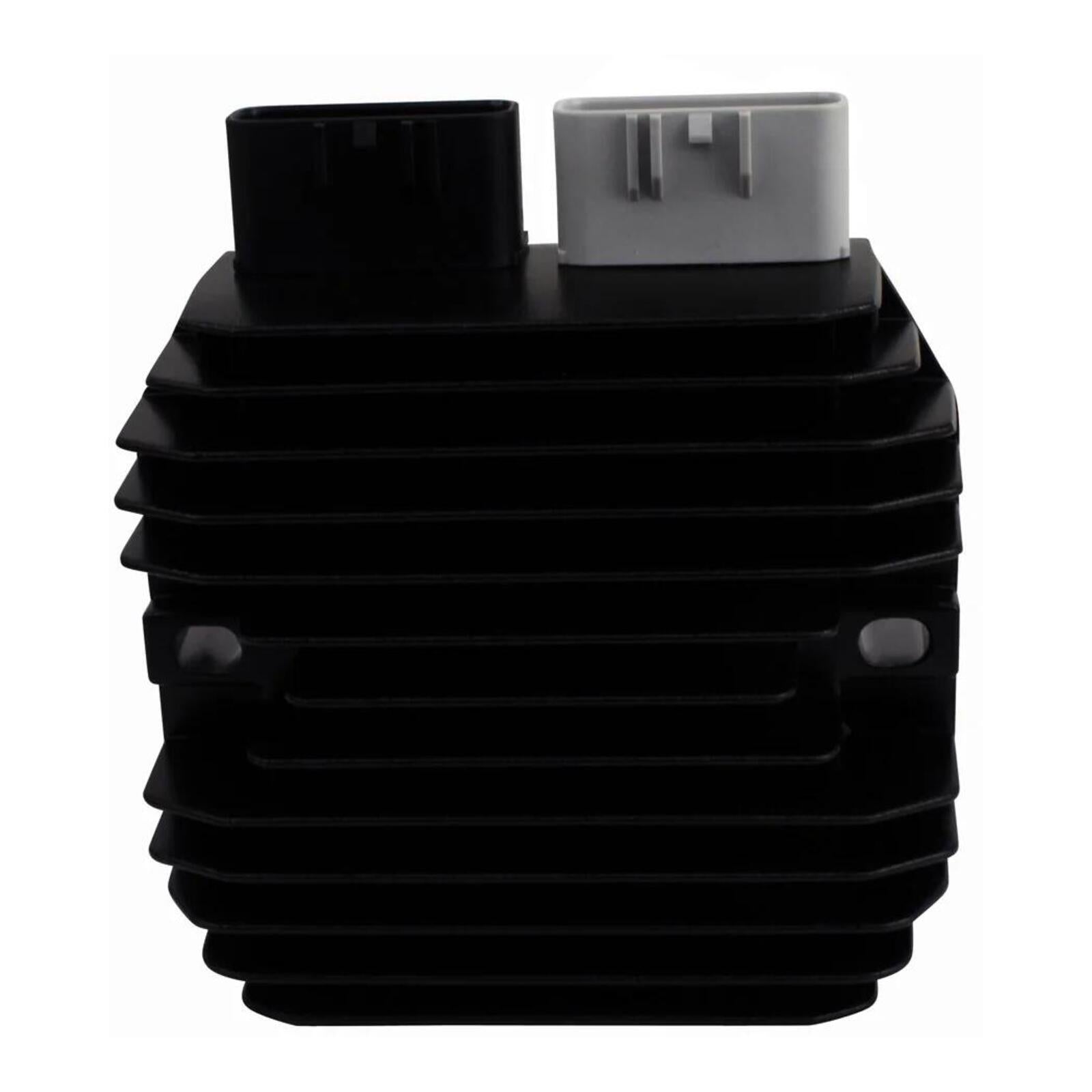

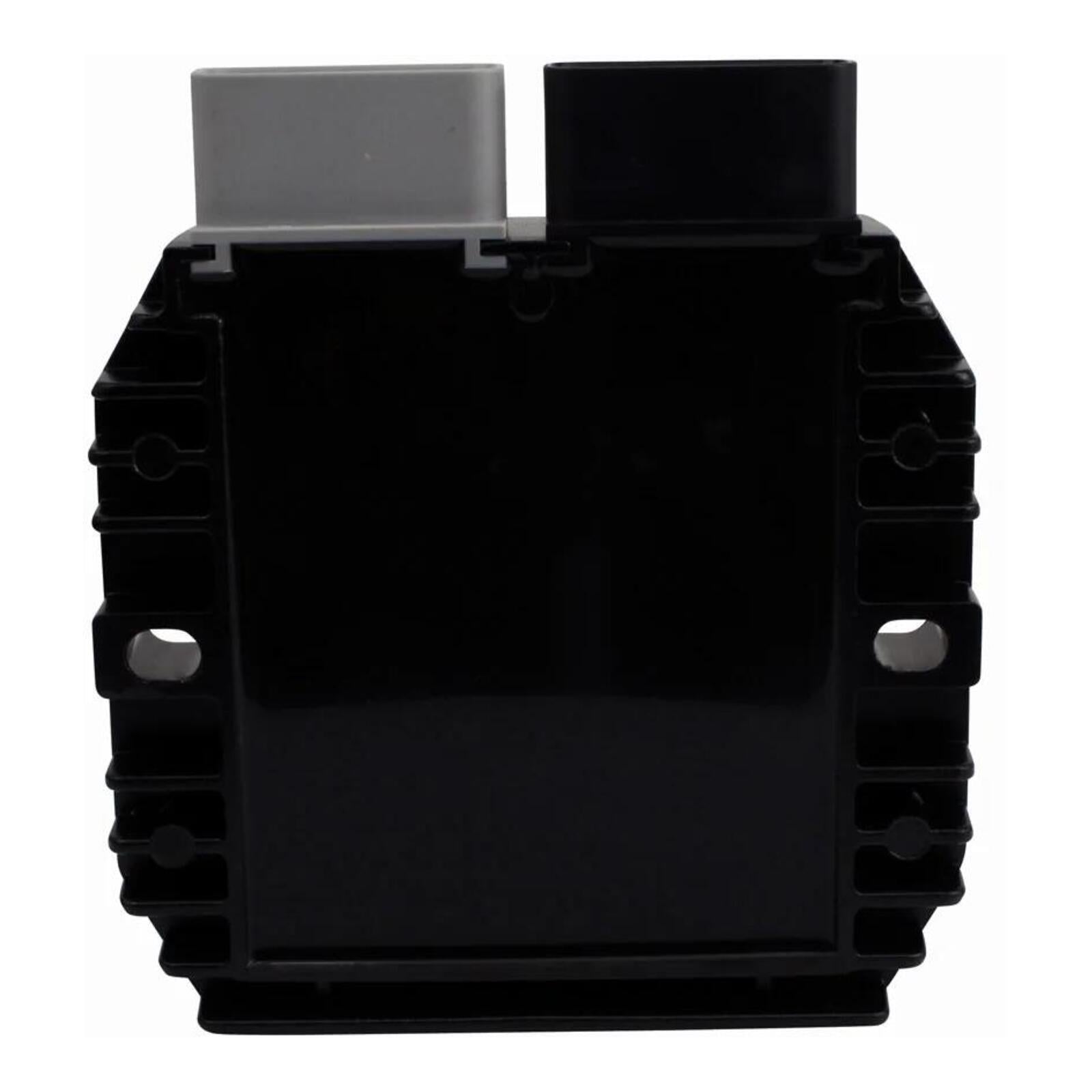

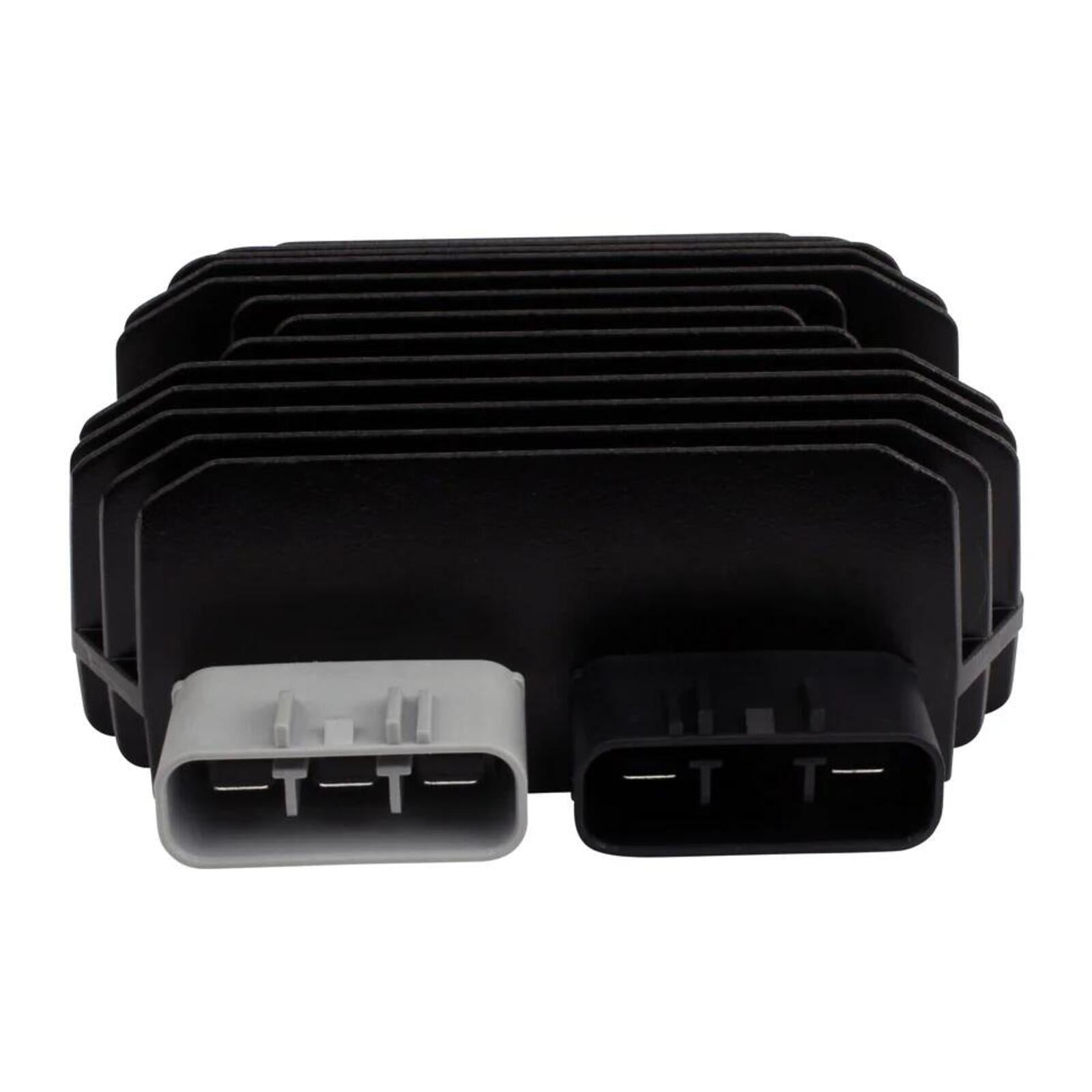

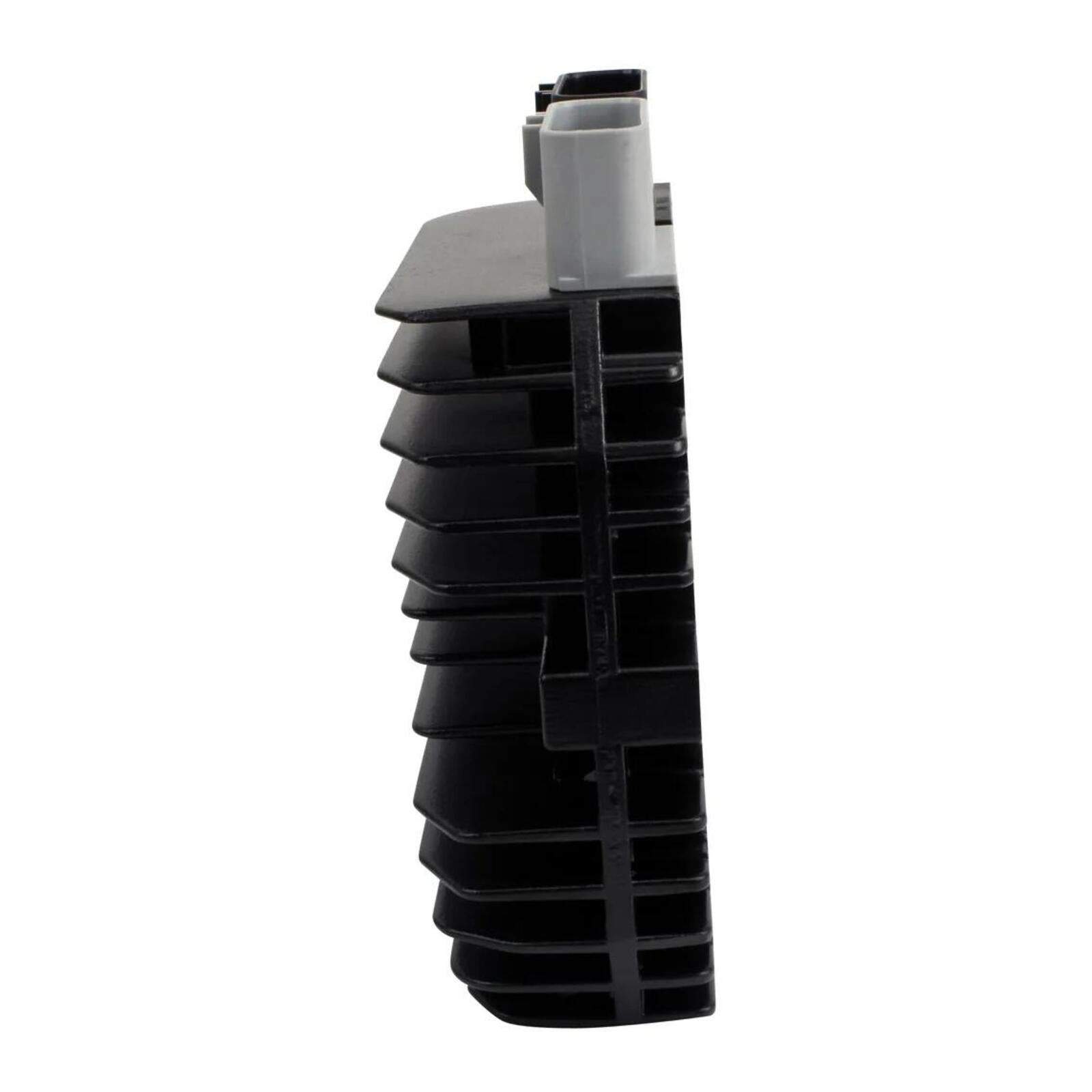

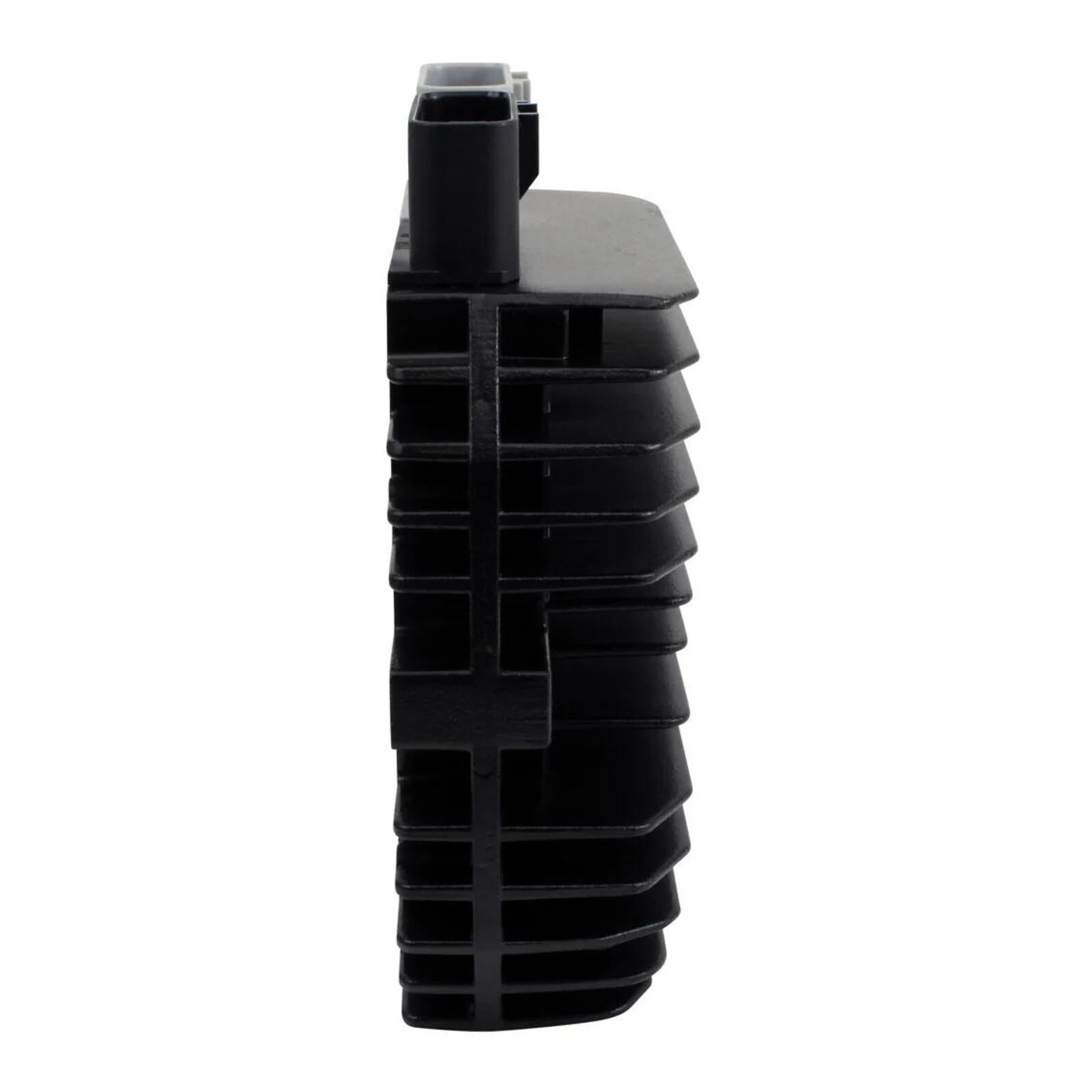

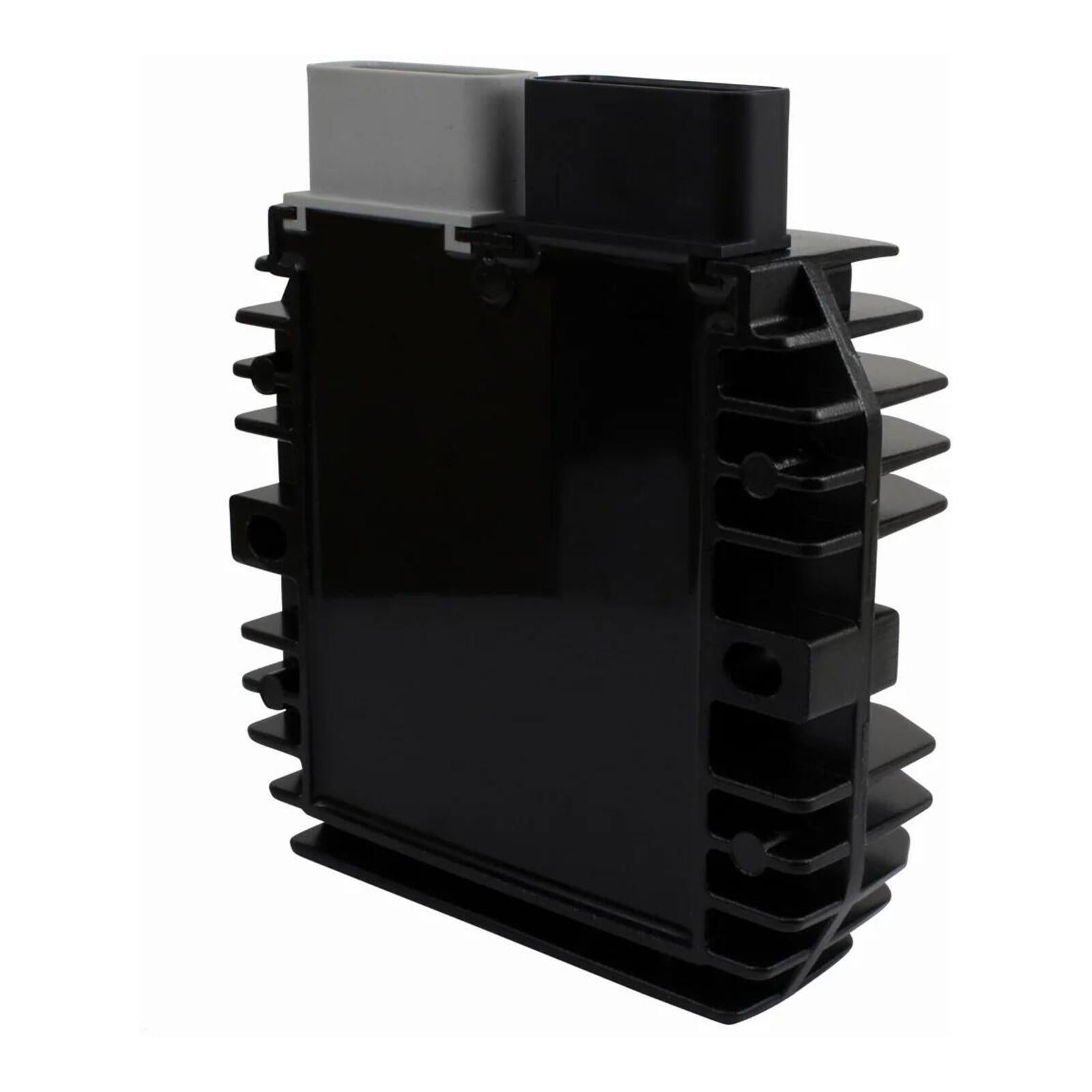

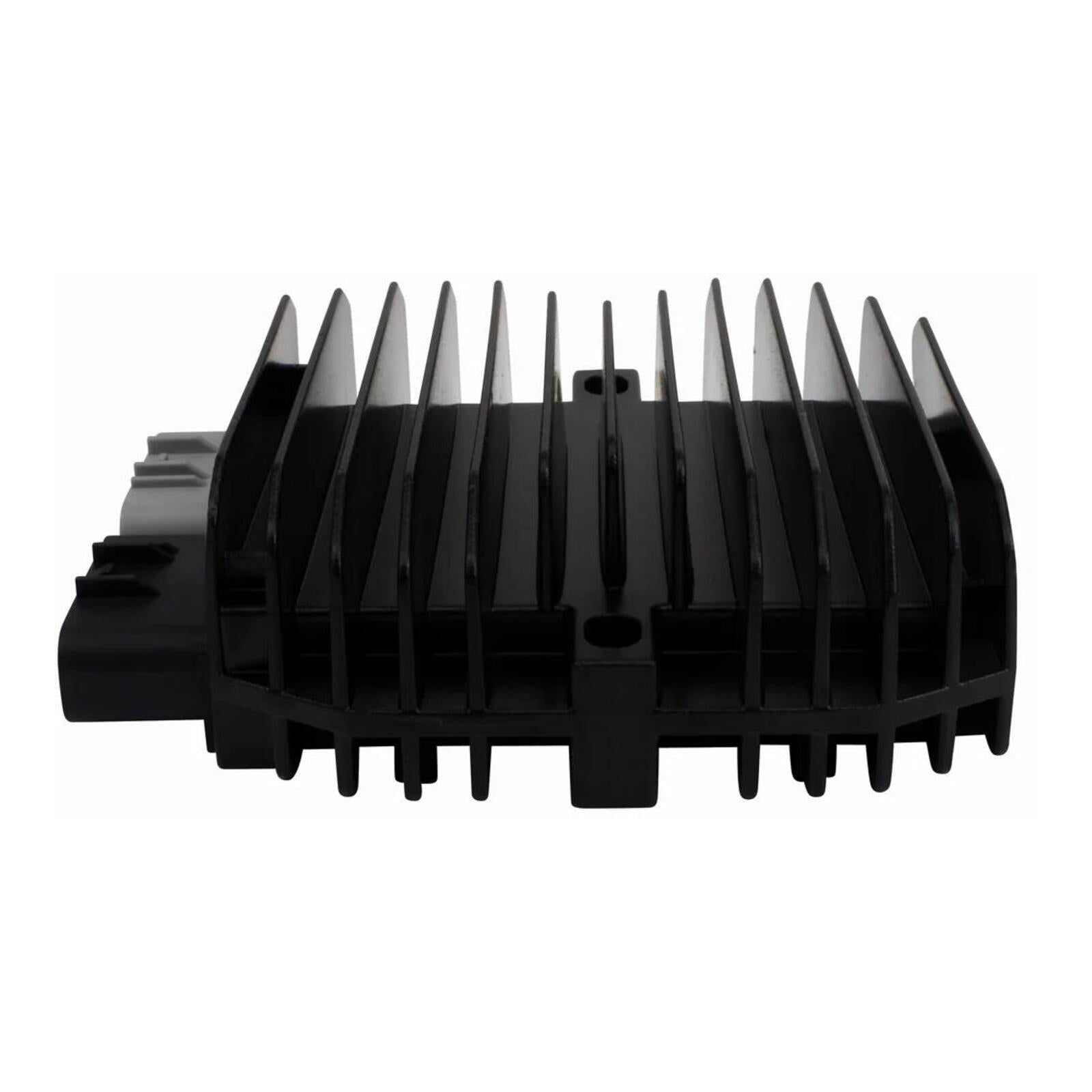

Upgrade your motorcycle's charging system with this high-performance MOSFET voltage regulator/rectifier. Designed as a direct replacement for the original unit, MOSFET technology runs significantly cooler than traditional diode-style regulators while providing improved charging efficiency and reliability. Built-in overheat protection helps prevent damage by temporarily shutting down the unit if excessive temperatures are reached, allowing it to cool before resuming operation.

Features:

• Direct replacement for the original regulator/rectifier.
• Plug-and-play design for quick and easy installation.
• Advanced MOSFET technology for cooler, more efficient operation.
• Superior charging performance compared to conventional diode-style regulators.
• Integrated overheat protection to help prevent component damage.
• Improved heat sink design for enhanced heat dissipation.
• Manufactured with premium electrical components.
• Factory tested before shipping.

Dimensions:

• Width: 119 mm
• Length: 133 mm
• Height: 42 mm
• Fixing Hole Centres: 101 mm

Specifications:

• Number of Plugs: 2
• Number of Pins: 5
• Minimum Charging Voltage: 14.5 V ±0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operating Temperature: -20°C to 85°C
