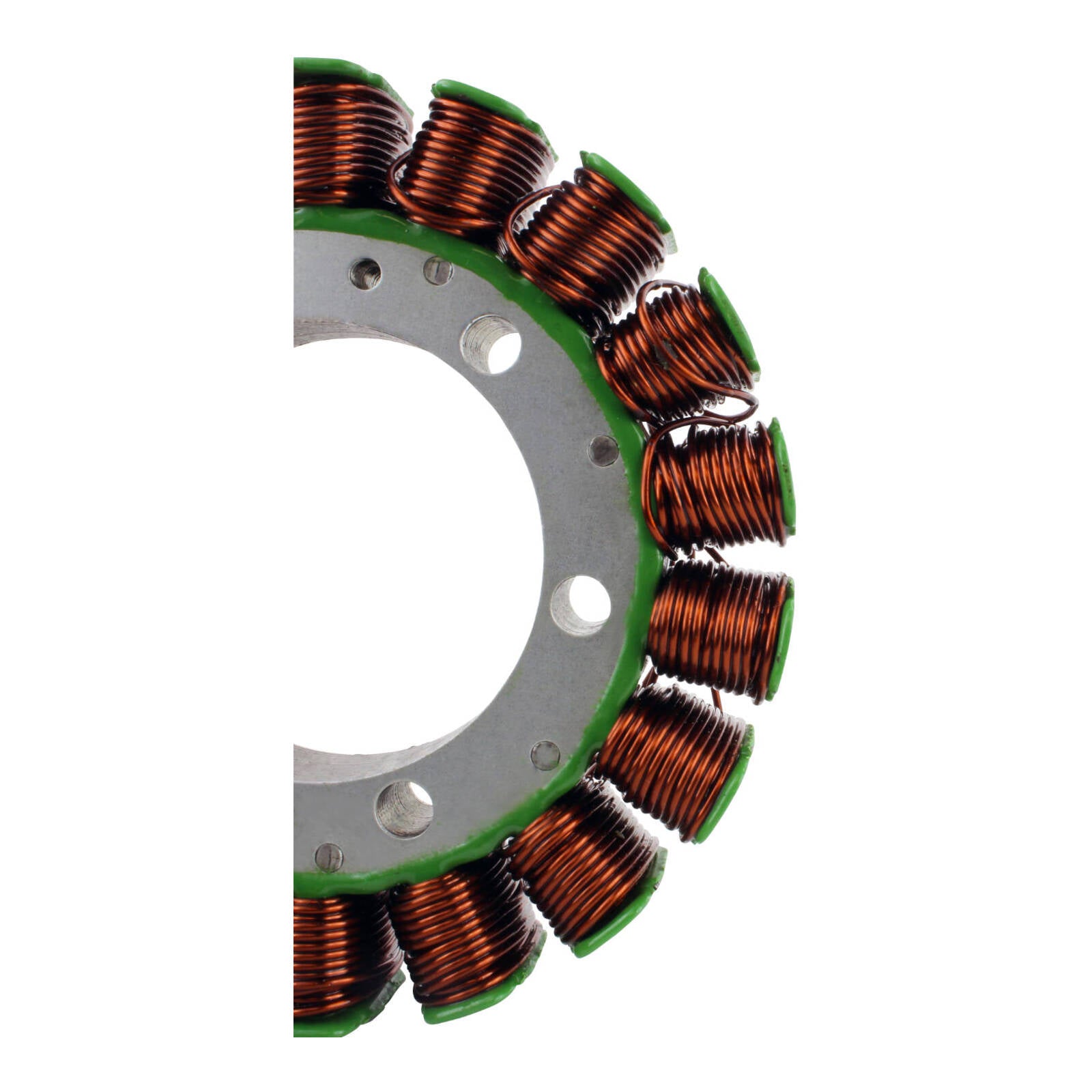

Generator Stator Various Arctic Cat (RM01285)
Add an item to your cart to get your MyMoto discount
Item is in stockHurry! Low inventoryItem is out of stock
Item is unavailable

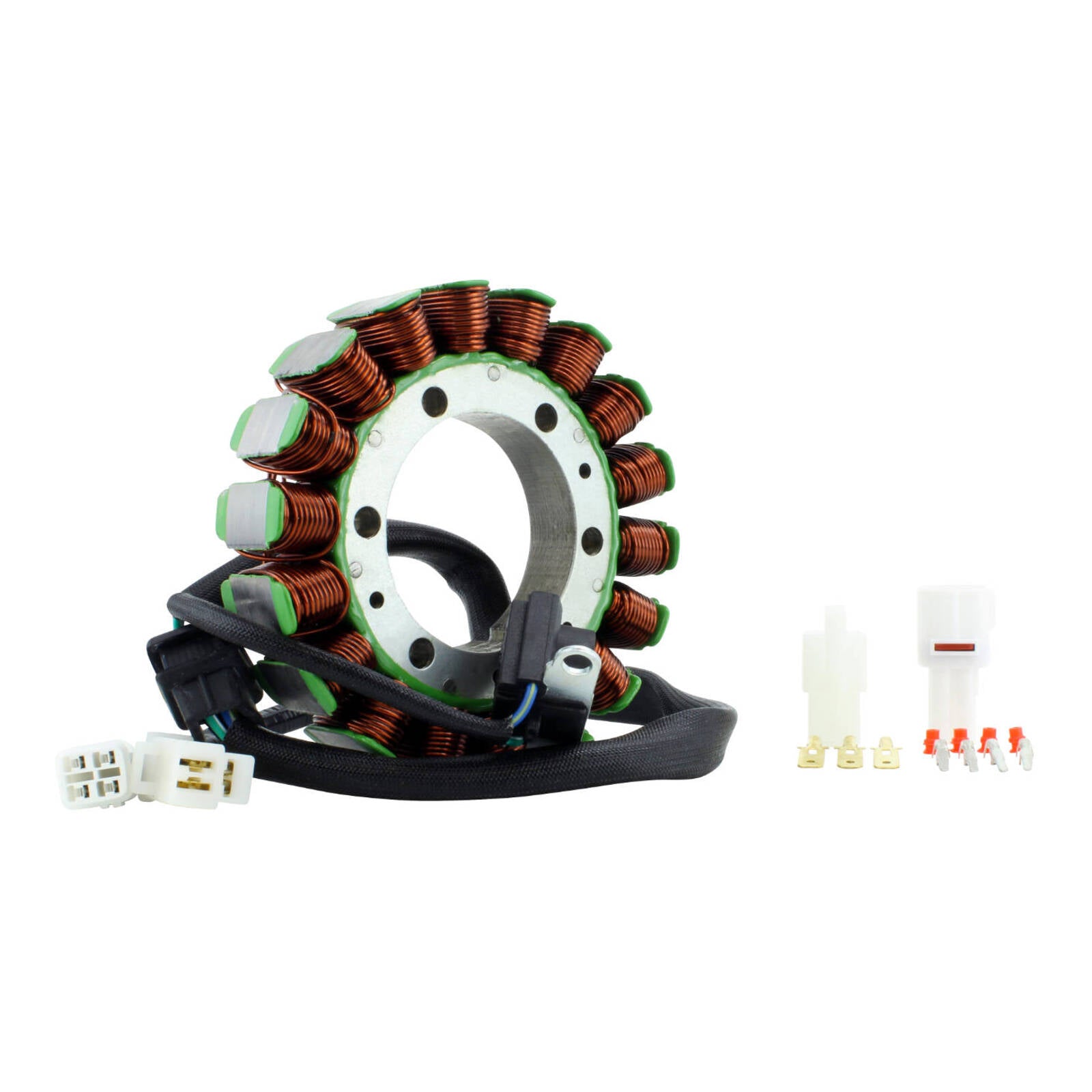

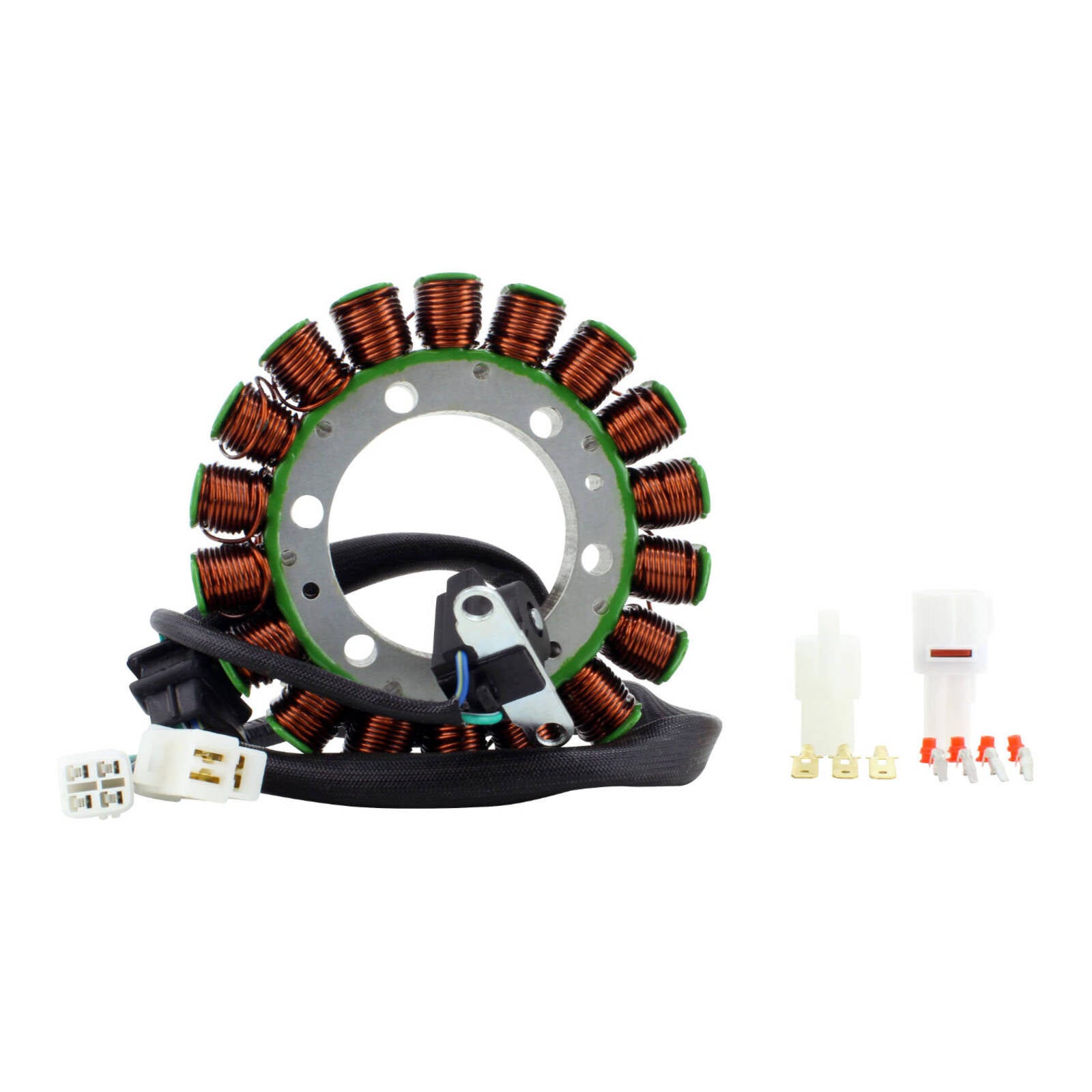

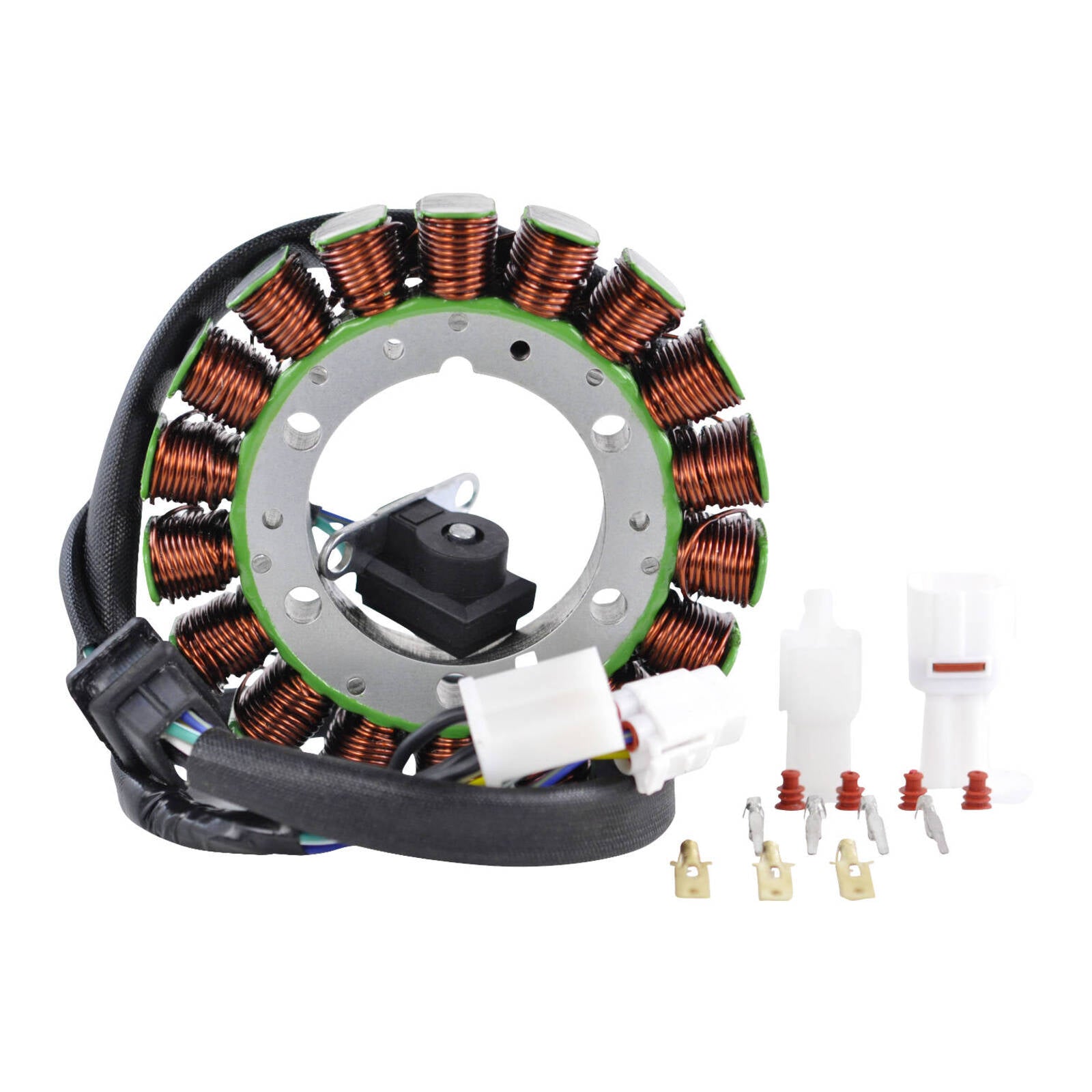

Plug-and-play replacement generator stator from RM Stator.
Dimensions:
- Interior diameter: 54mm
- Exterior diameter: 114mm

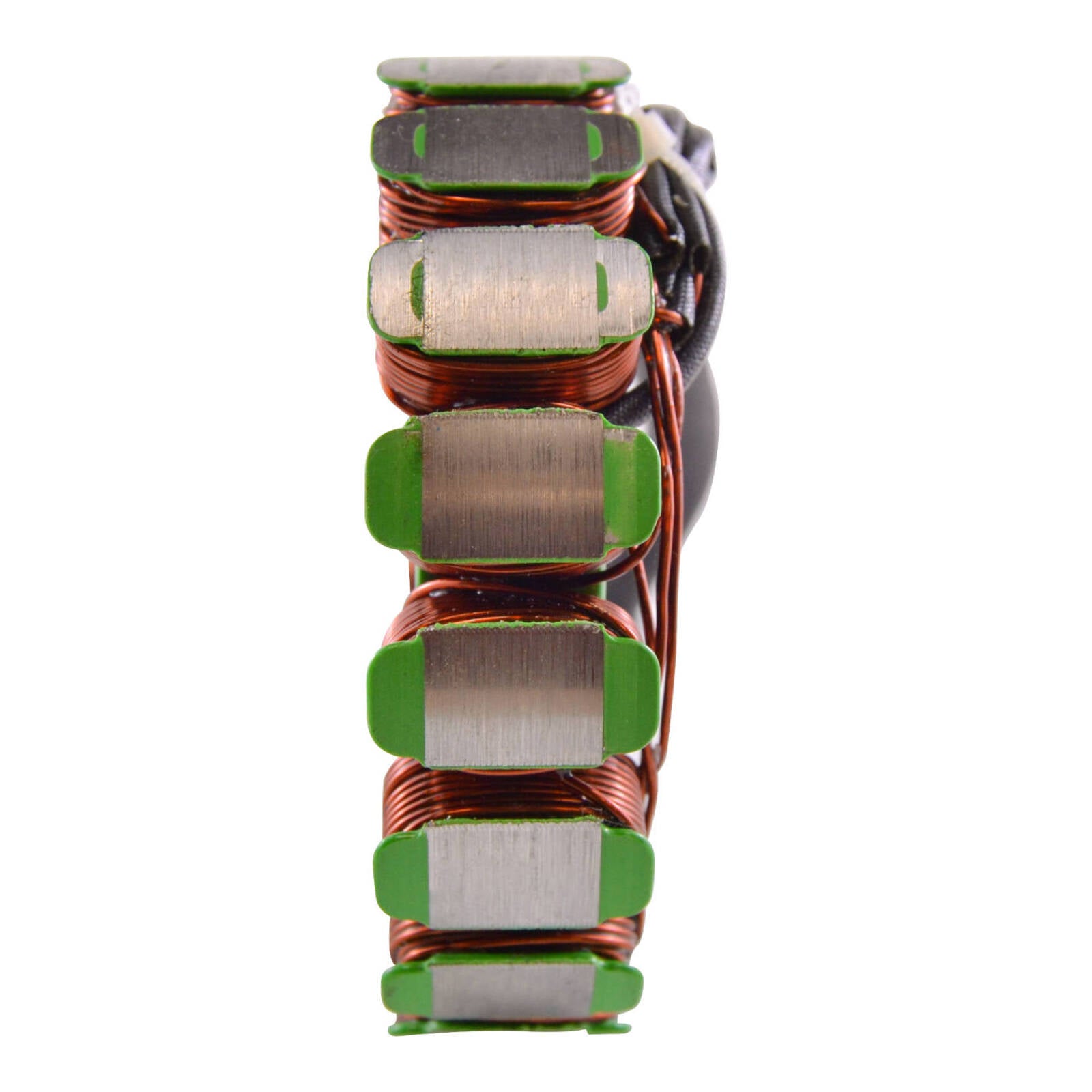

- Thickness: 18mm
- Length of wires stator to grommet: 140mm
- Length of wires grommet to plug: 320mm
- Length of pickup coil's wire to grommet: 95mm
Other specifications:

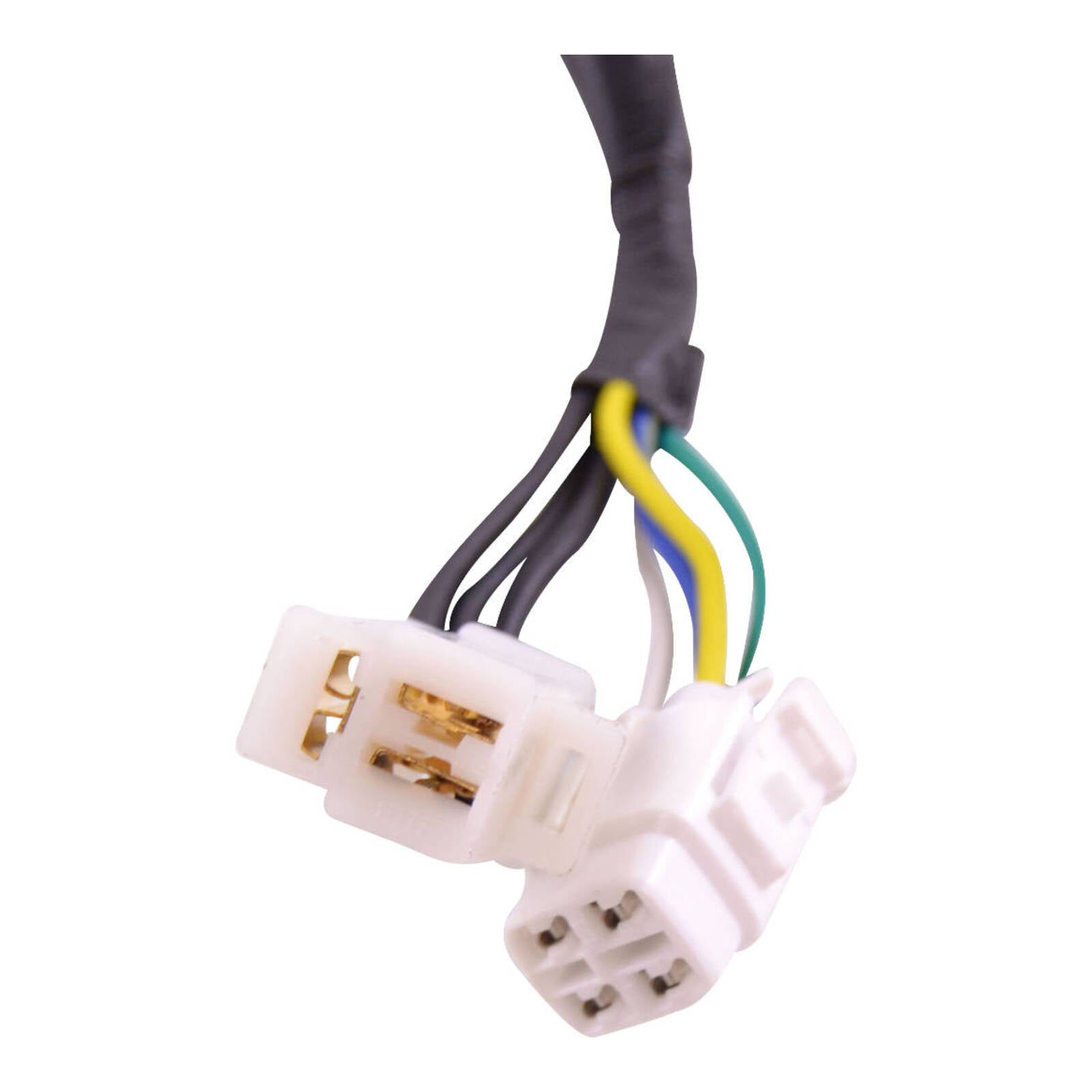

- Number of wires: 7
- Number of plugs: 2
- Number of pins: 7
- Wire to wire resistance:
- Alternator: Black between each Black = 0.4 ohms +-20%
- Pickup: Blue to Green = 185 ohms +/-20%
- Position Sensor: White to Yellow = 0.2ohms +/-20%
Details:
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included

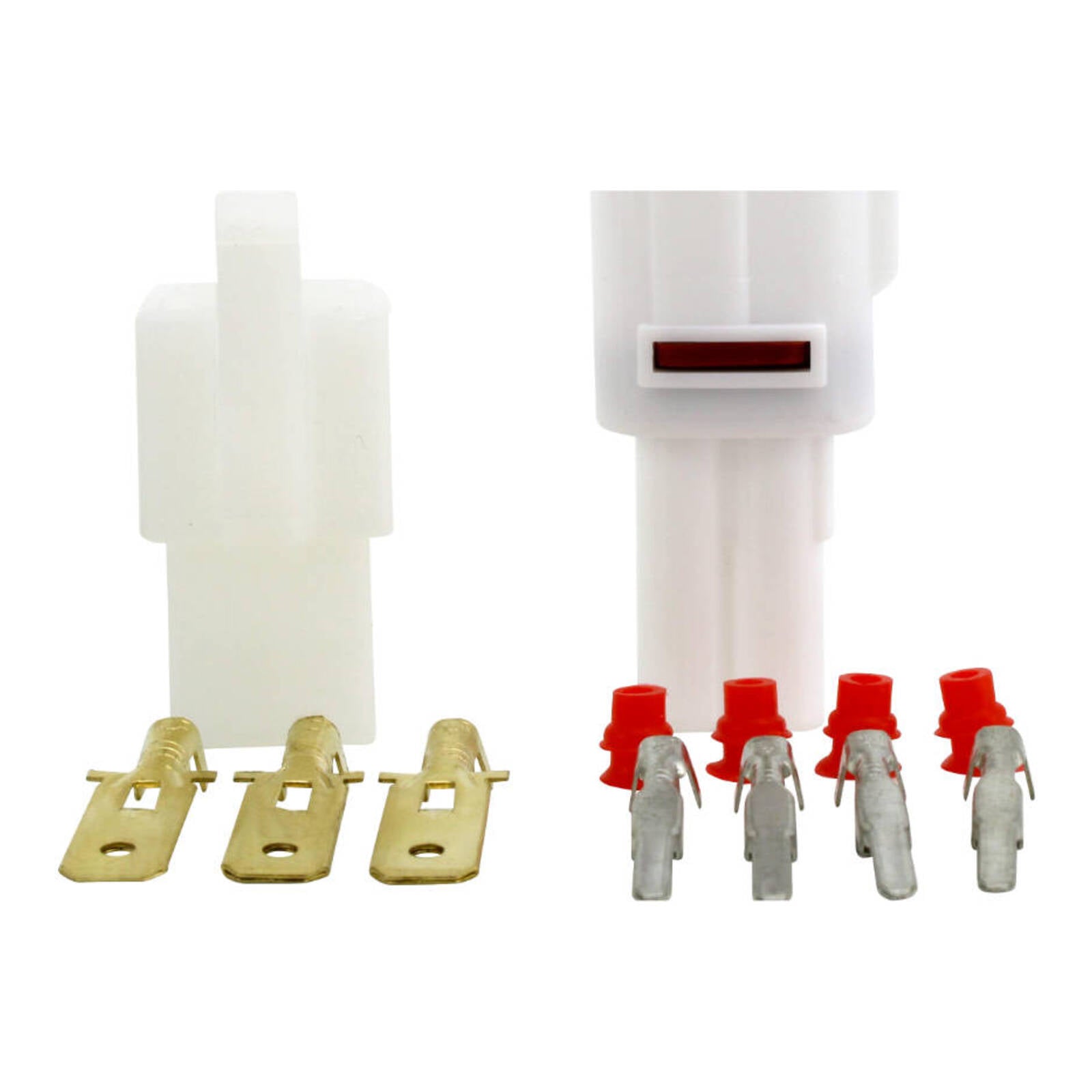

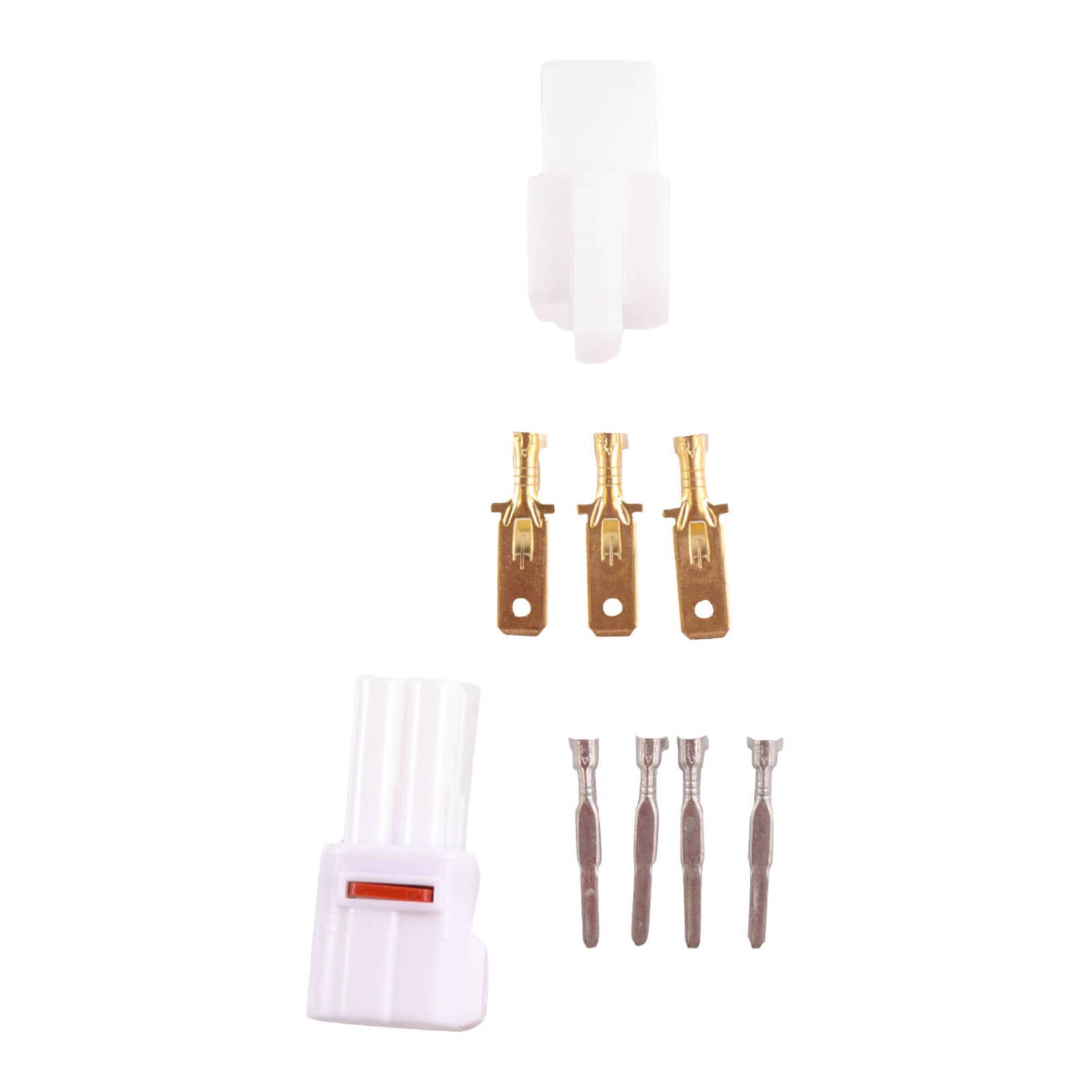

- Connector included
- Rubber grommet included
- All products shipped are tested
