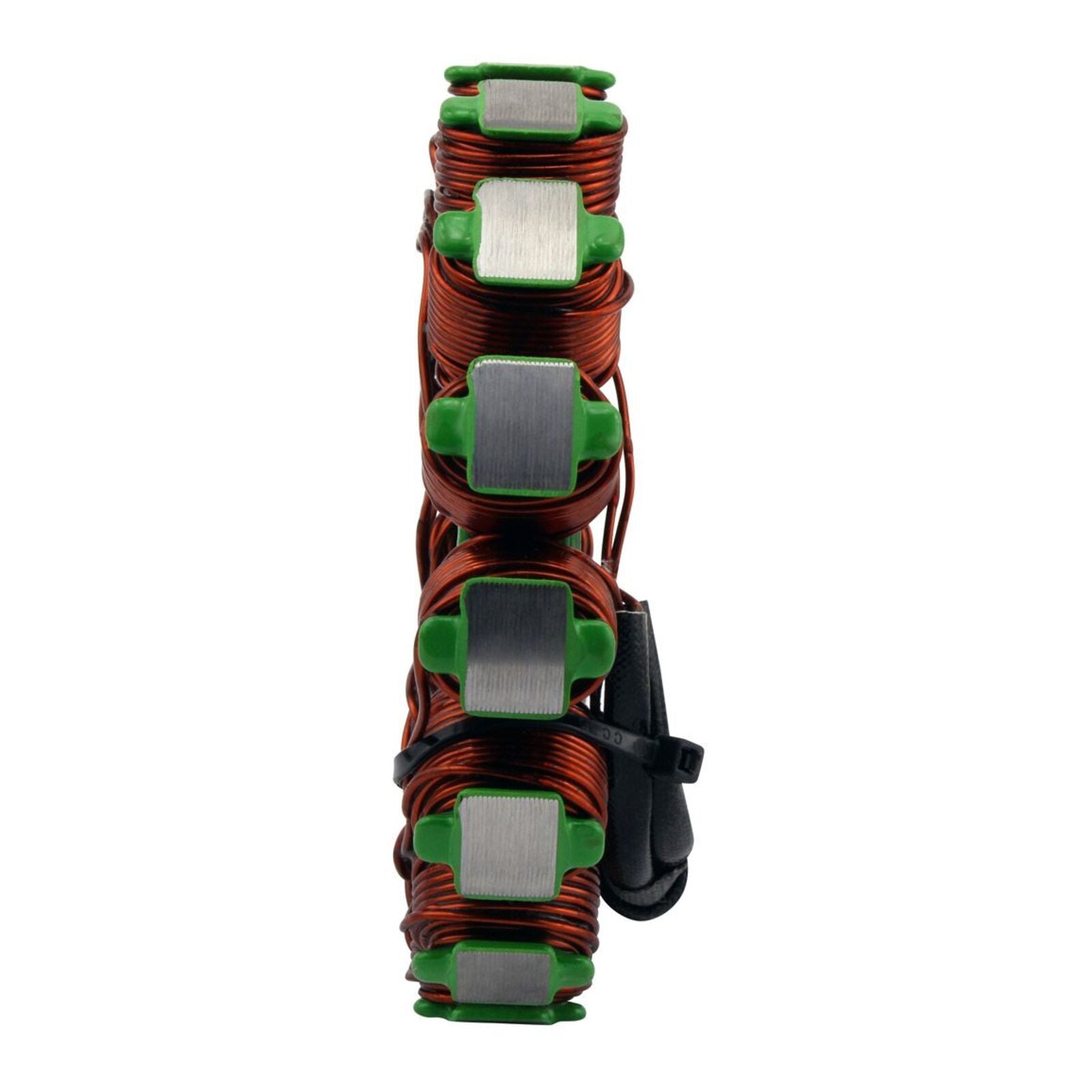

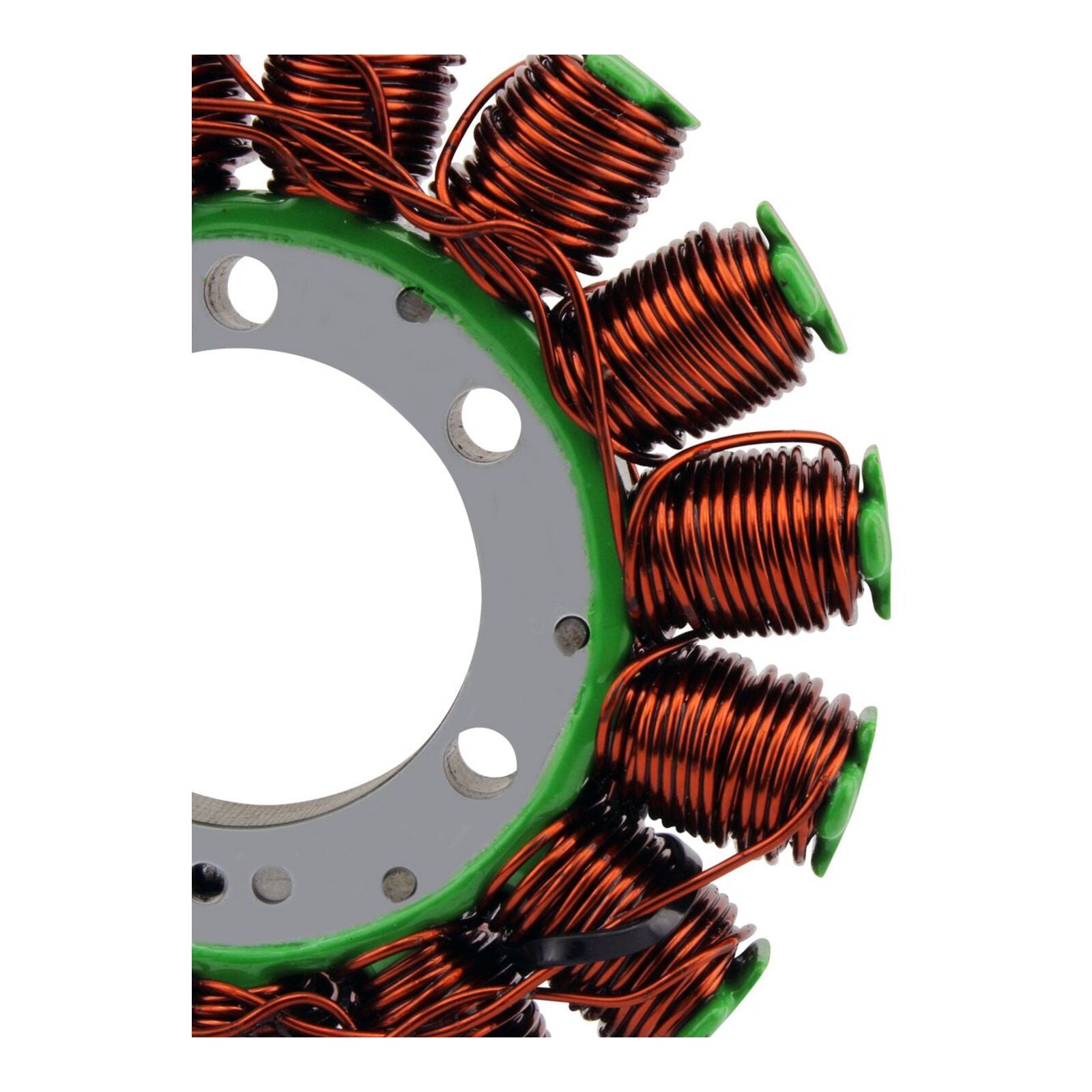

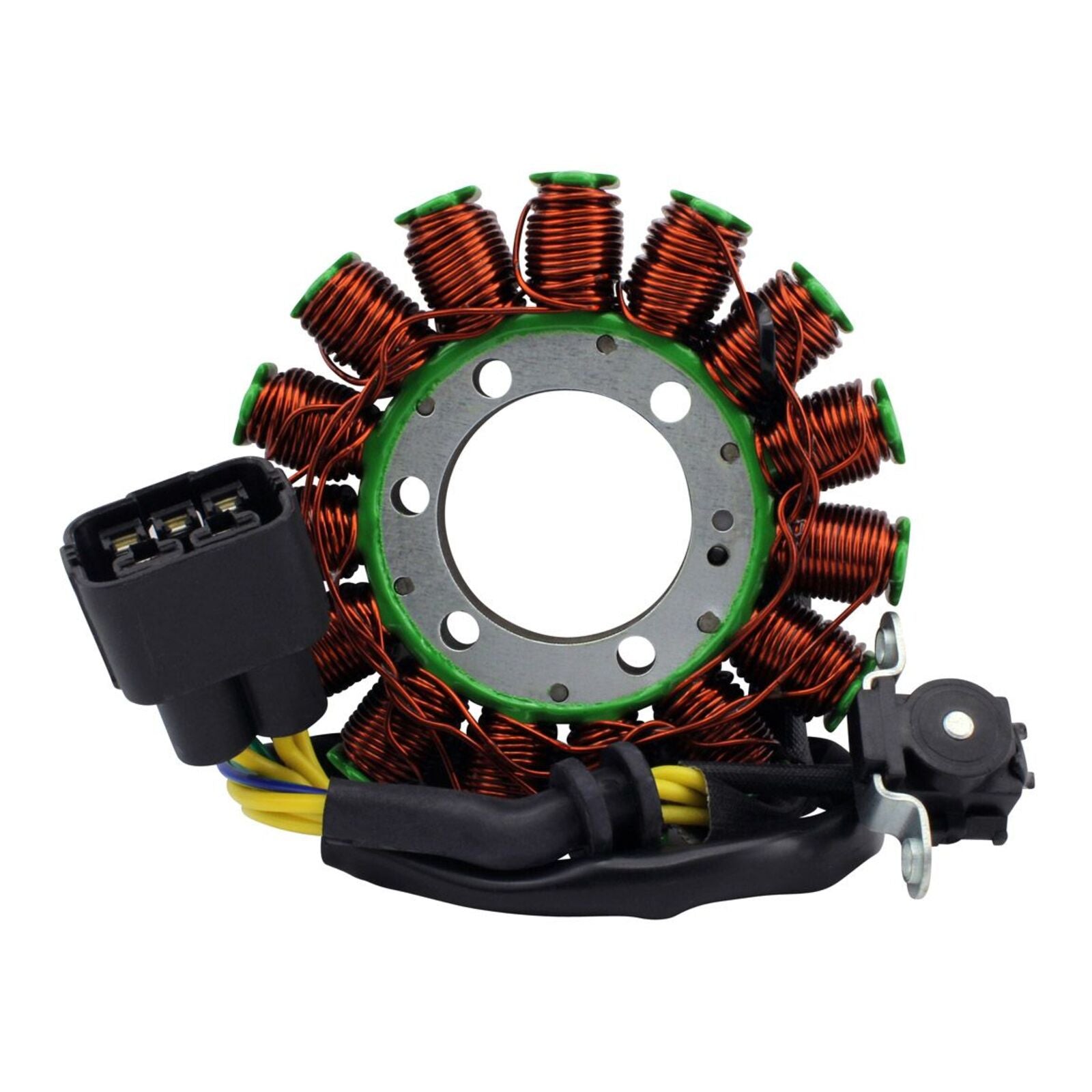

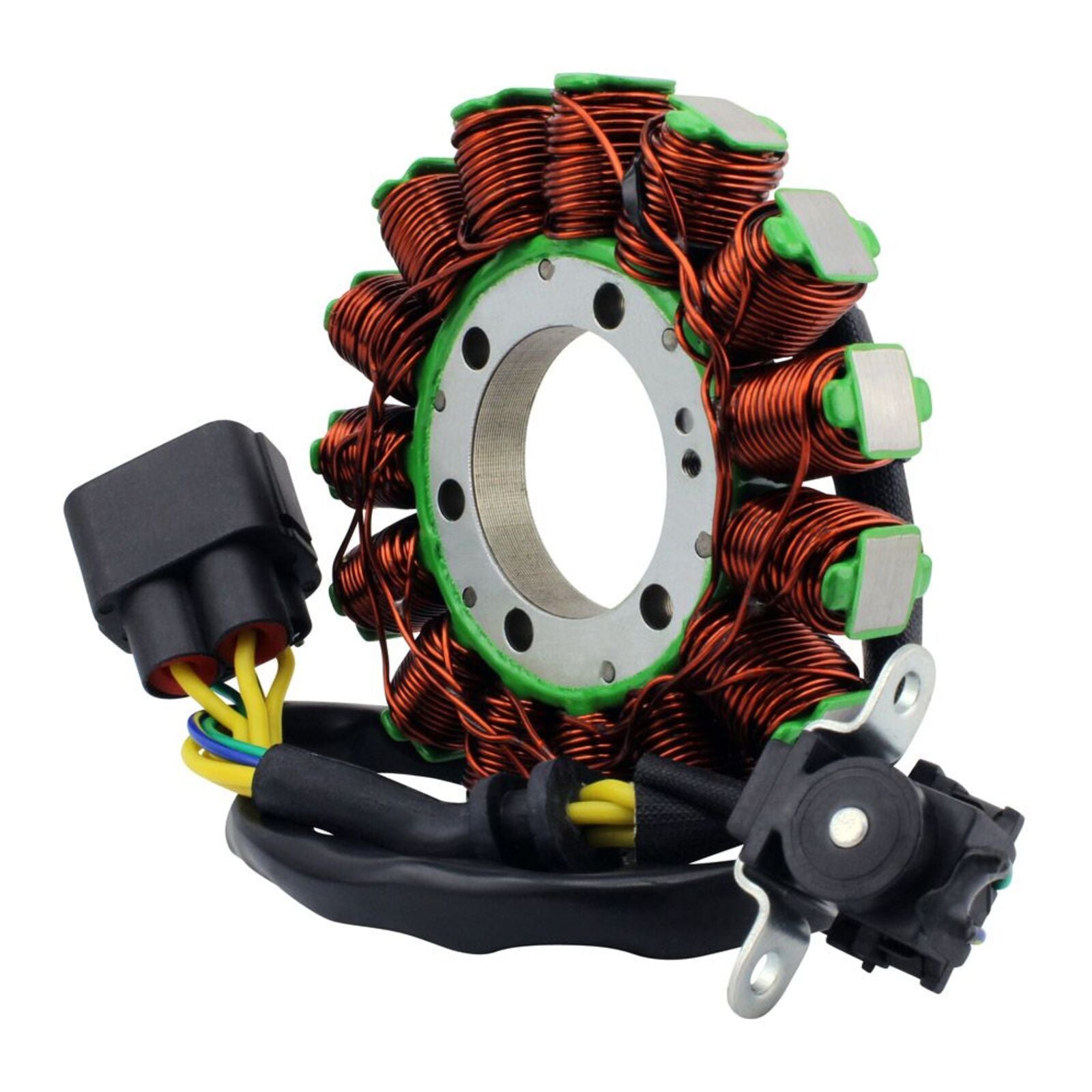

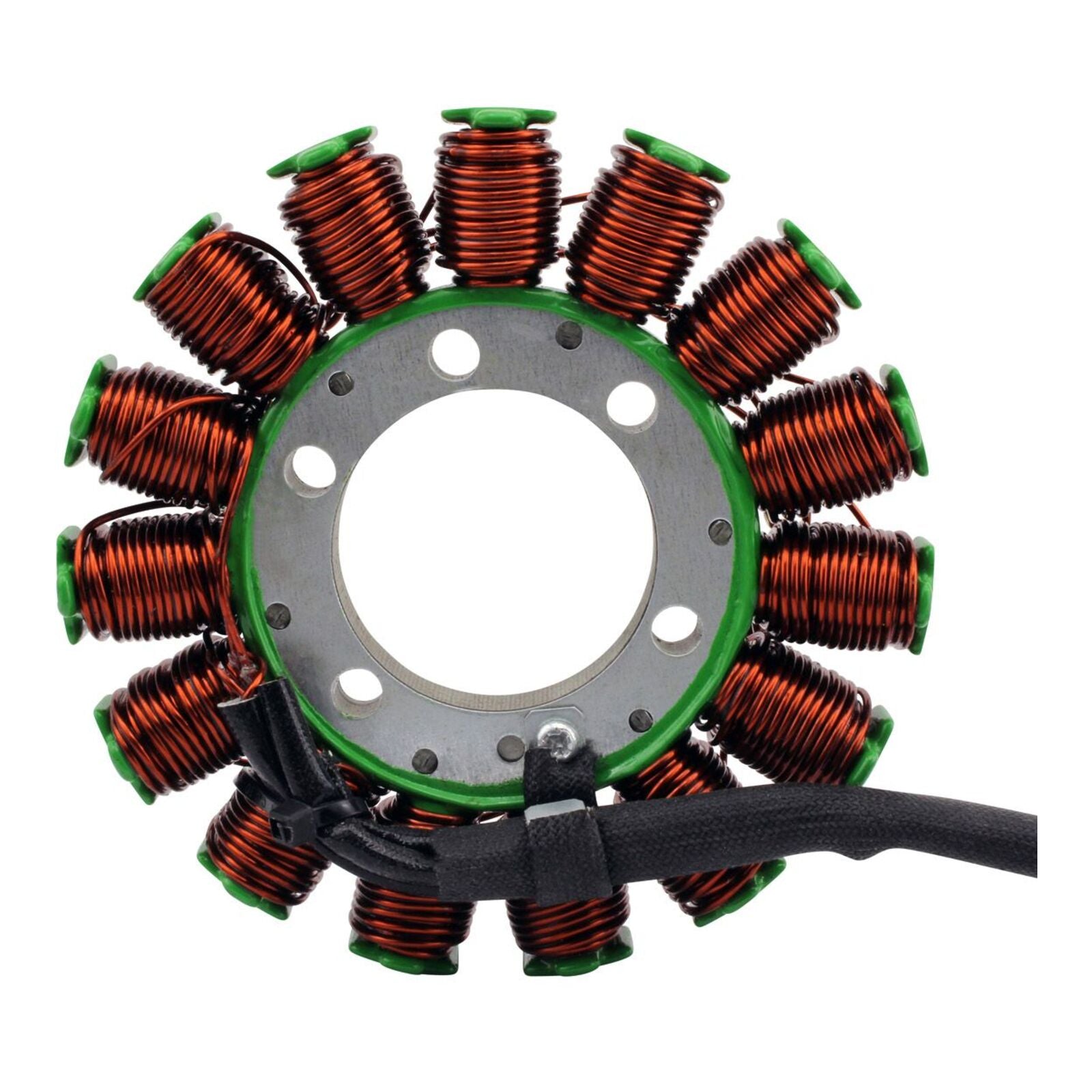

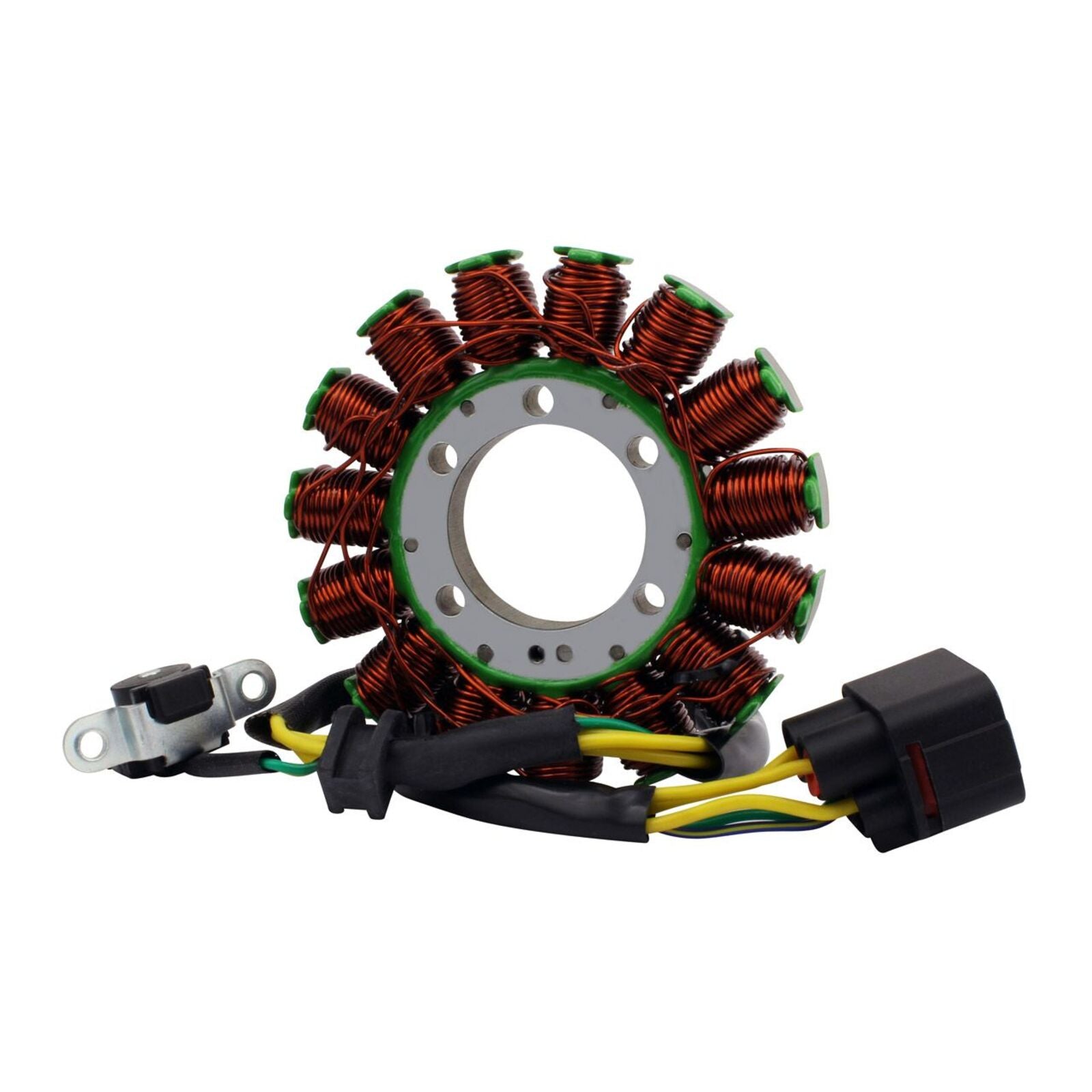

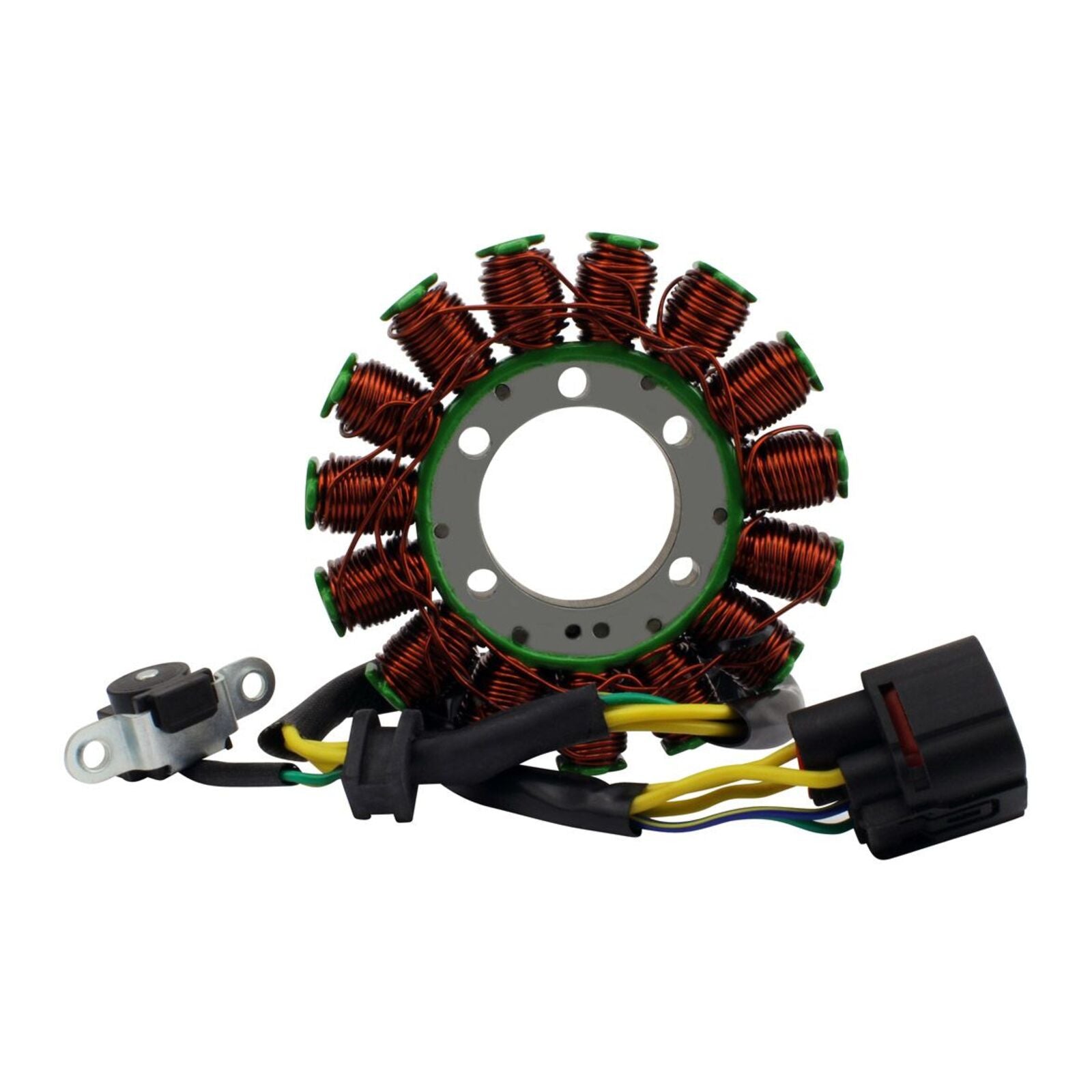

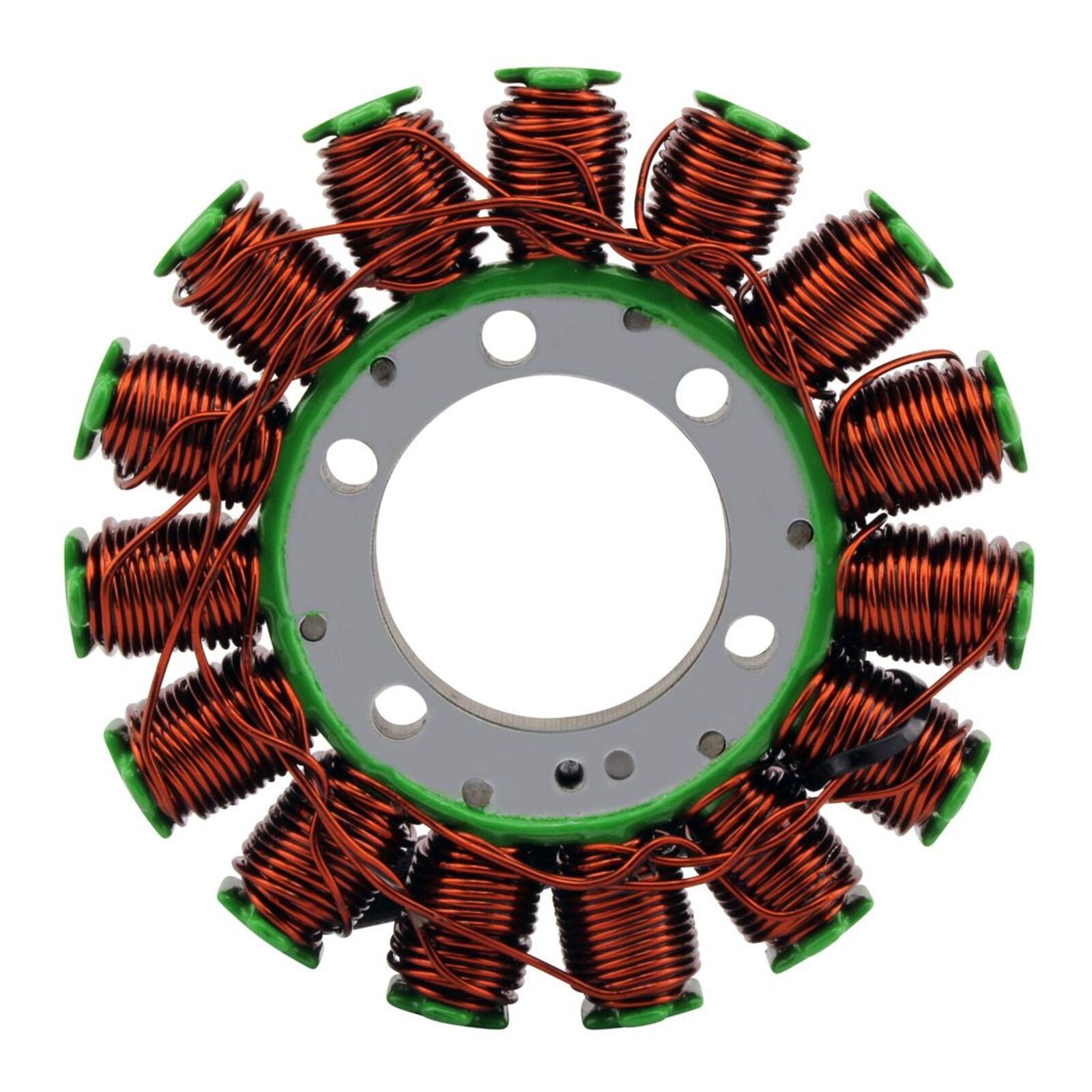

Stator for Honda SXS700 Pioneer '14–'24 – RMS010-108248
Add an item to your cart to get your MyMoto discount
Item is in stockHurry! Low inventoryItem is out of stock
Item is unavailable
Direct replacement to your original unit.
Features:
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials.
- Highest grade of copper winding, resistant to 200 degrees Celsius.

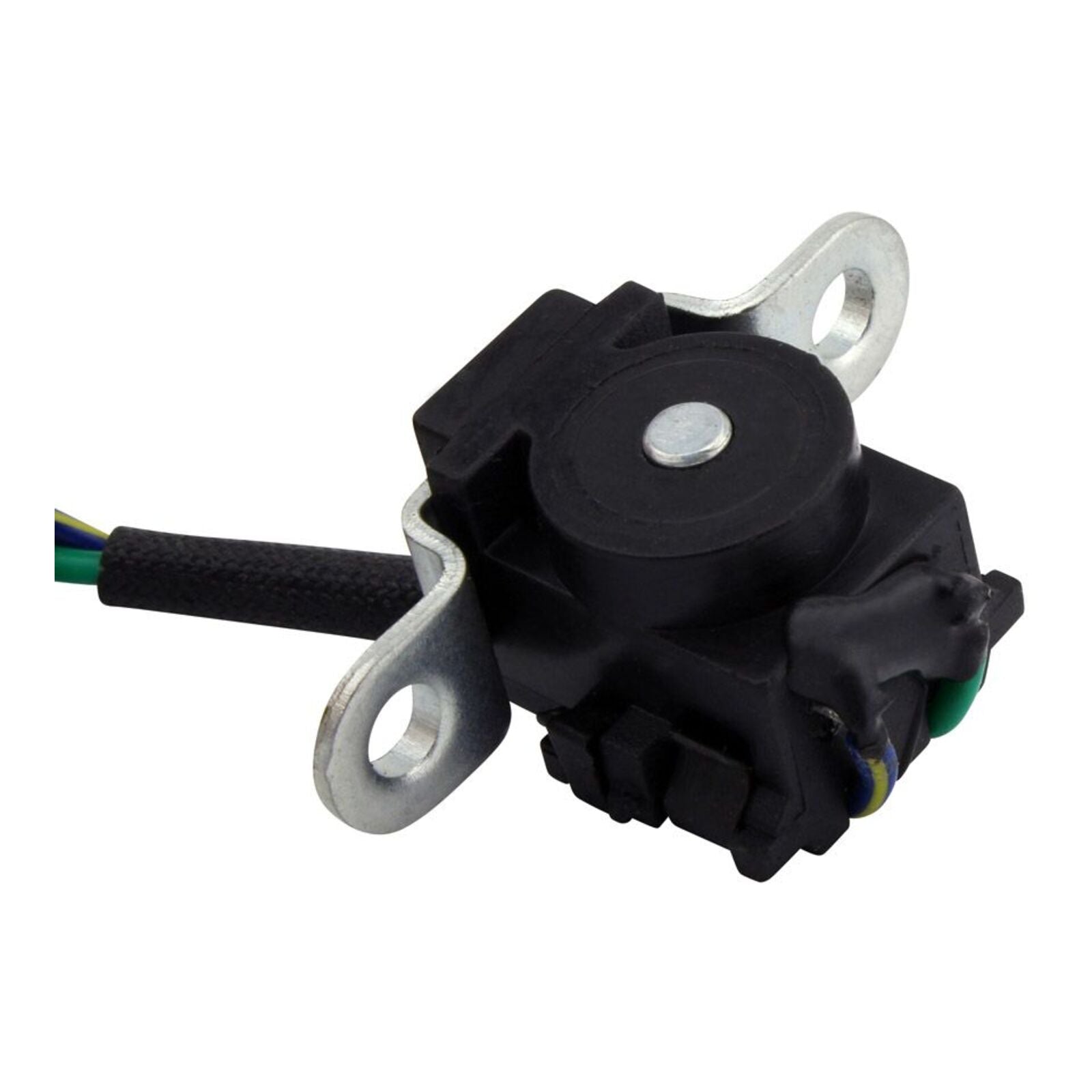

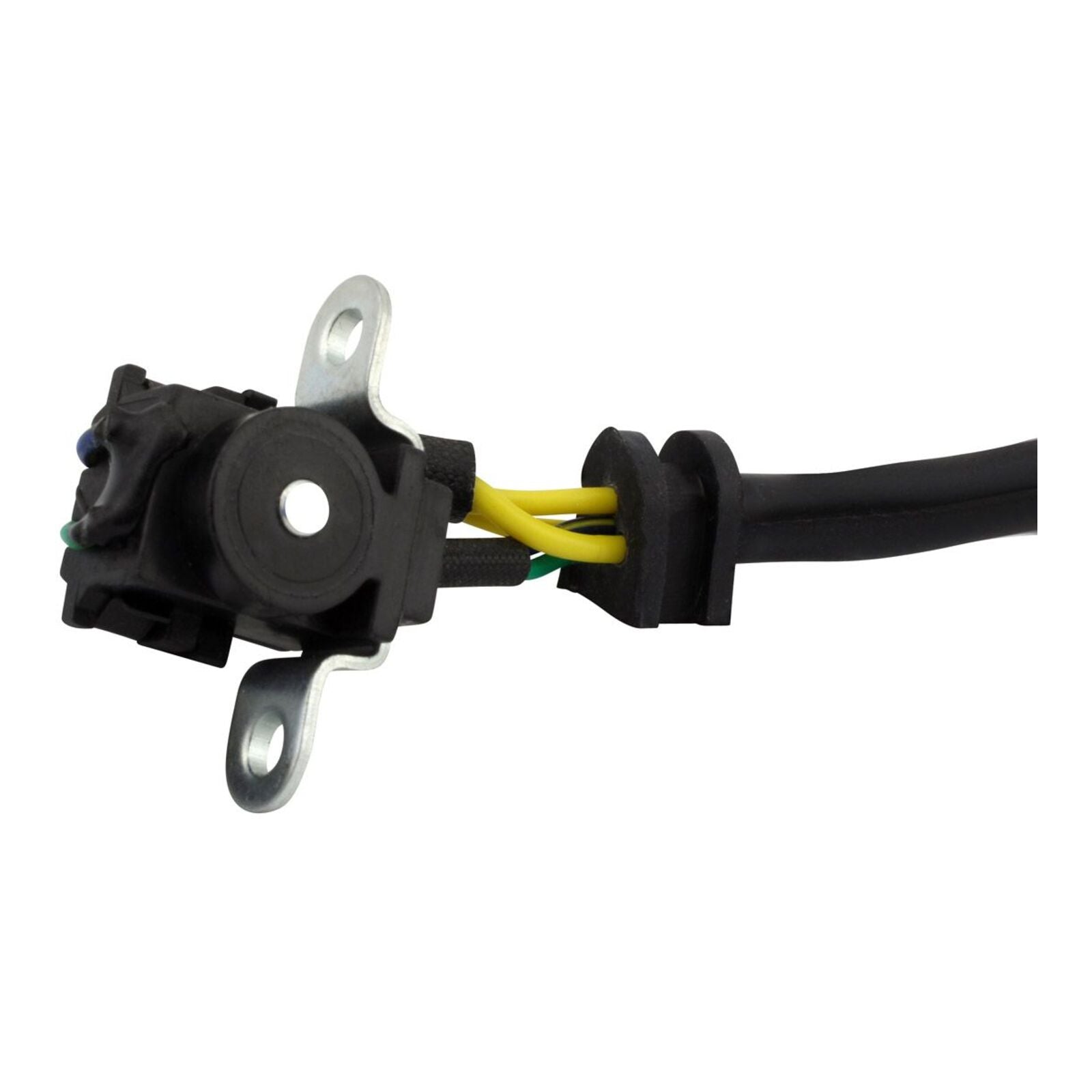

- Pickup pulsar coil included.

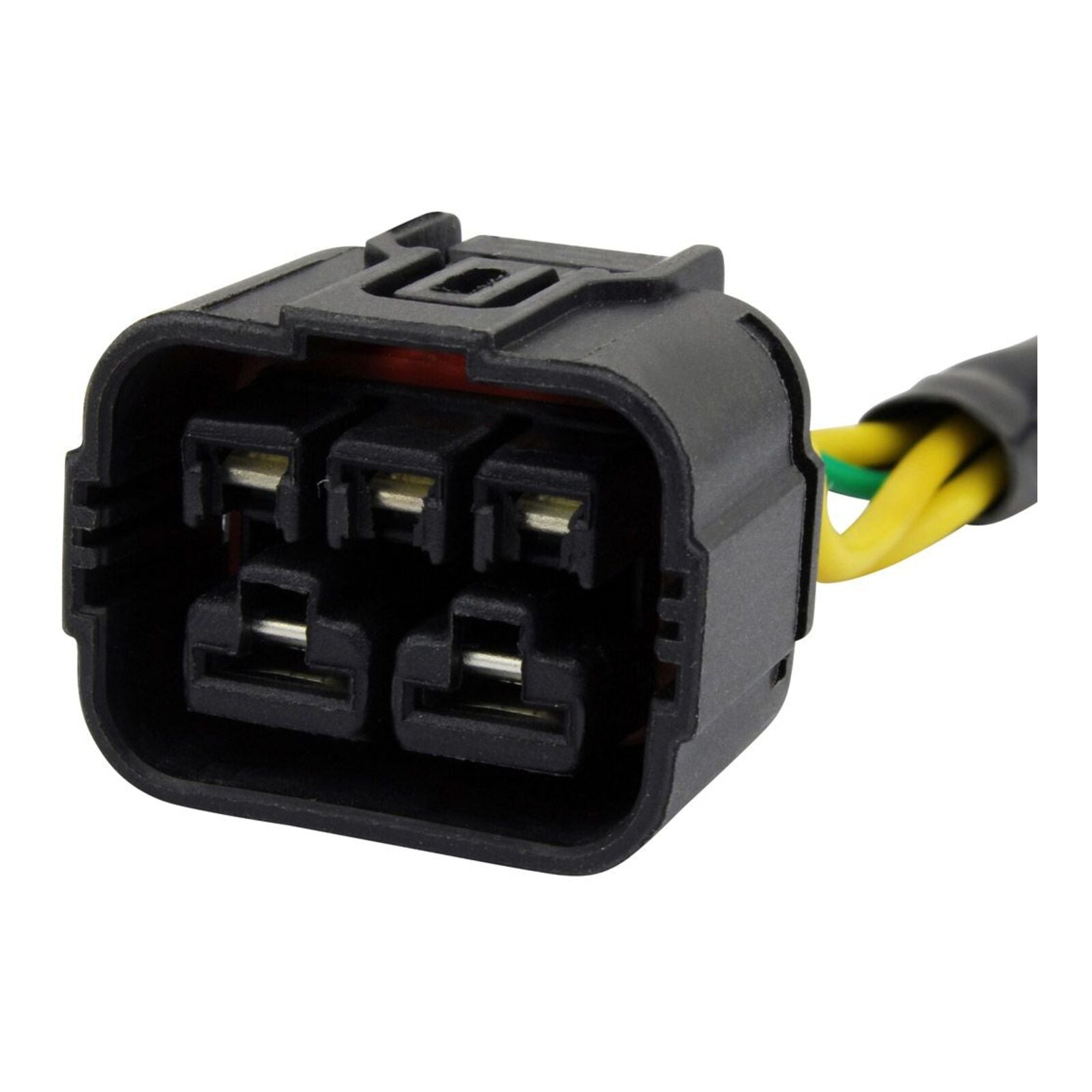

- Connectors included.

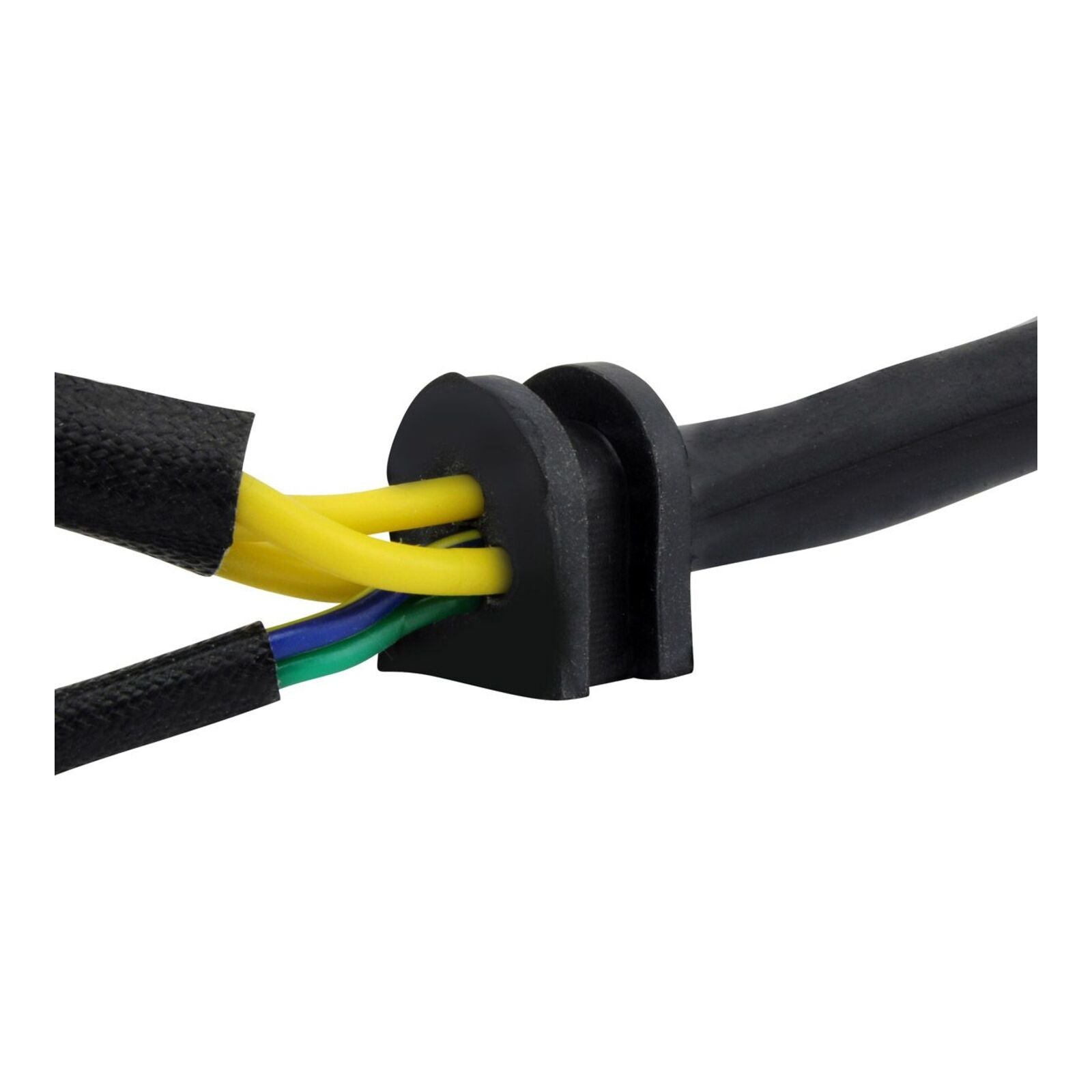

- Rubber grommet included.
- All products shipped are tested.
Dimensions:
- Interio r Diameter: 42 mm
- Exterior Diameter: 115 mm
- Thickness: 10 mm
- Length of Wires (Stator to Grommet): 90 mm
- Length of Wires (Grommet to Plug): 40 mm
- Length of Pickup Coil's Wire to Grommet: 320 mm
Other Specifications:
- Number of Wires: 5
- Number of Plugs: 1
- Number of Pins: 5
- Number of Poles: 15
- Alternator (Yellow to Yellow): 0.4 ohms ± 20%
- Pickup (Blue/Yellow to Green): 240 ohms ± 20%
