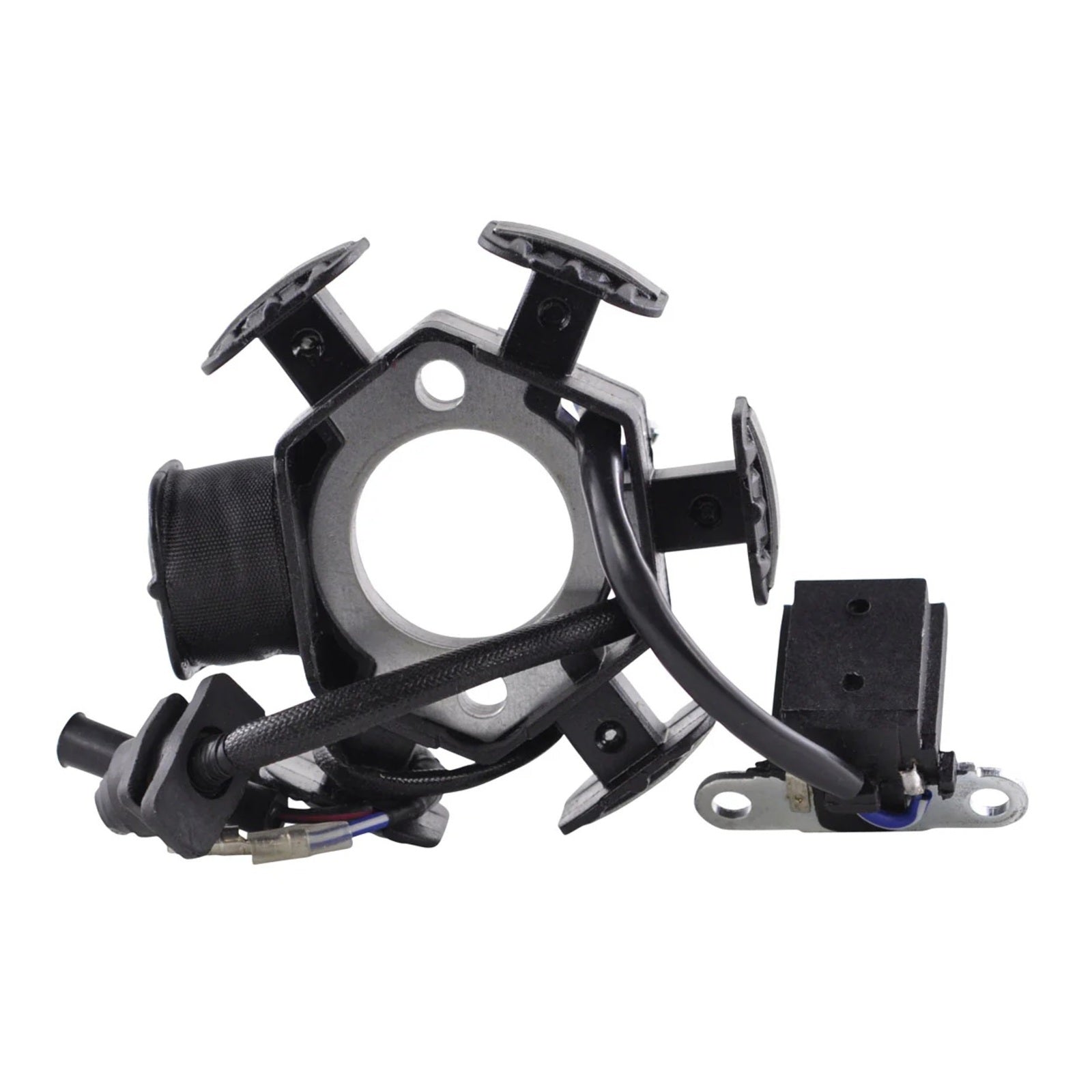

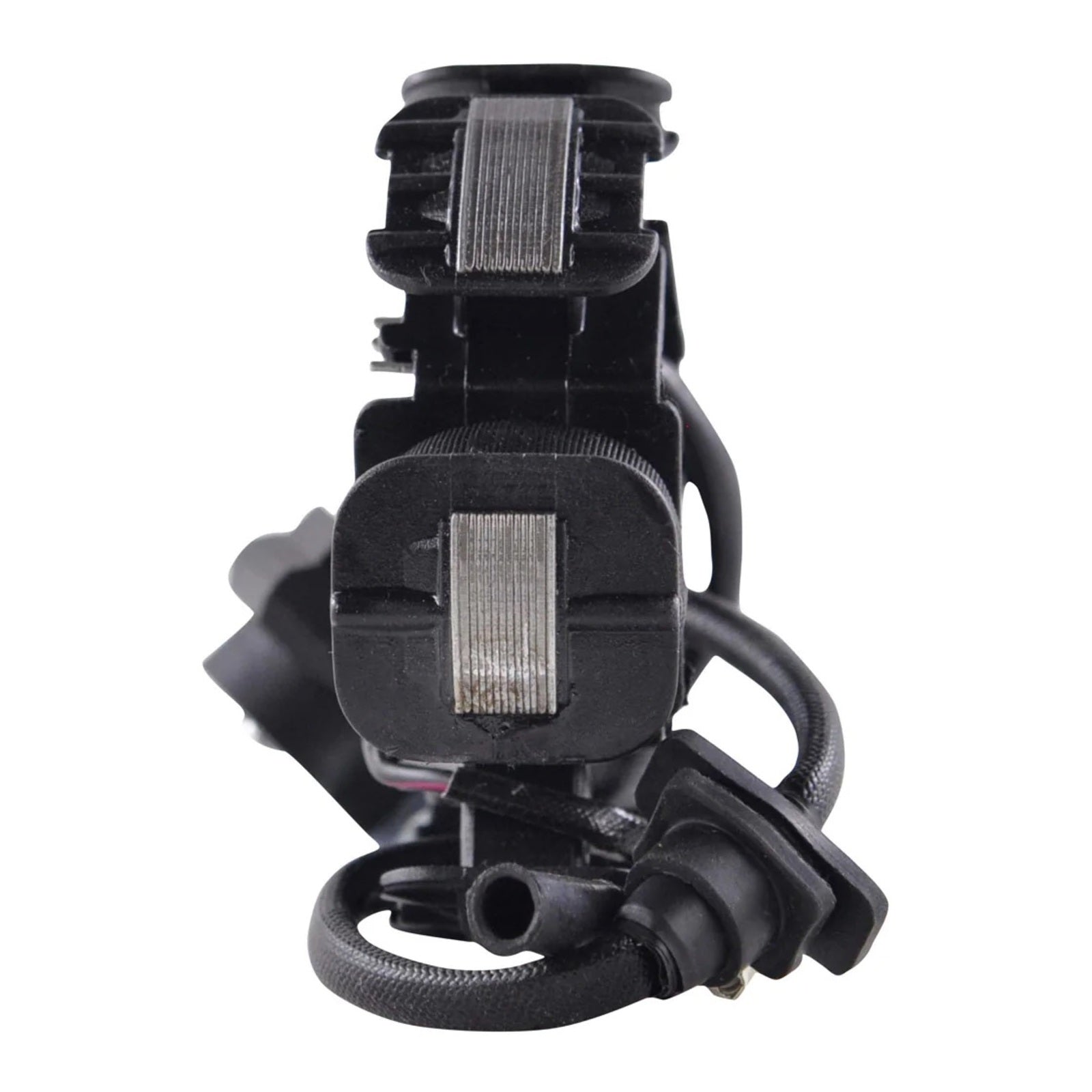

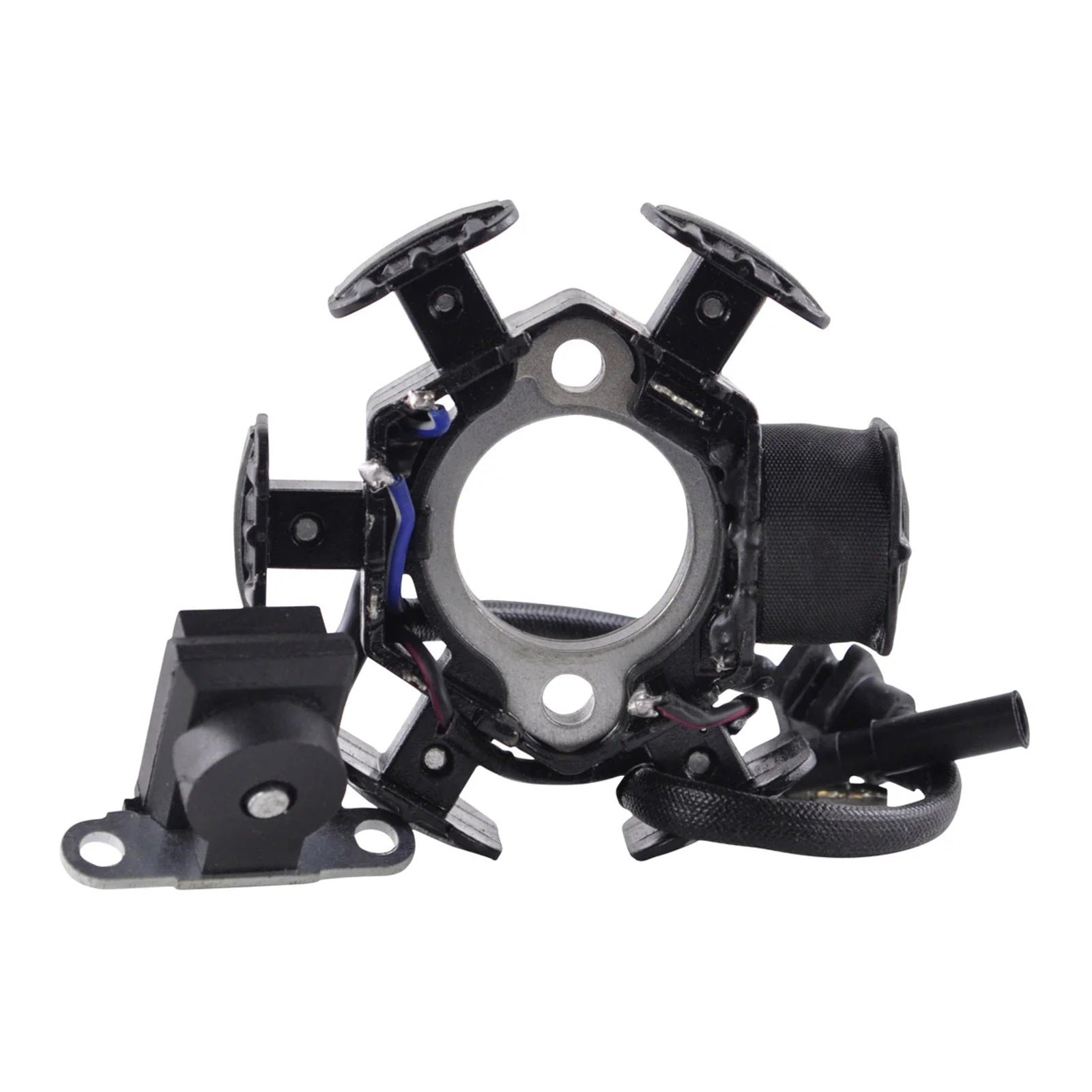

Brand new aftermarket stator. Direct replacement to your original unit.

Features:

• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials.
• Highest grade of copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included.

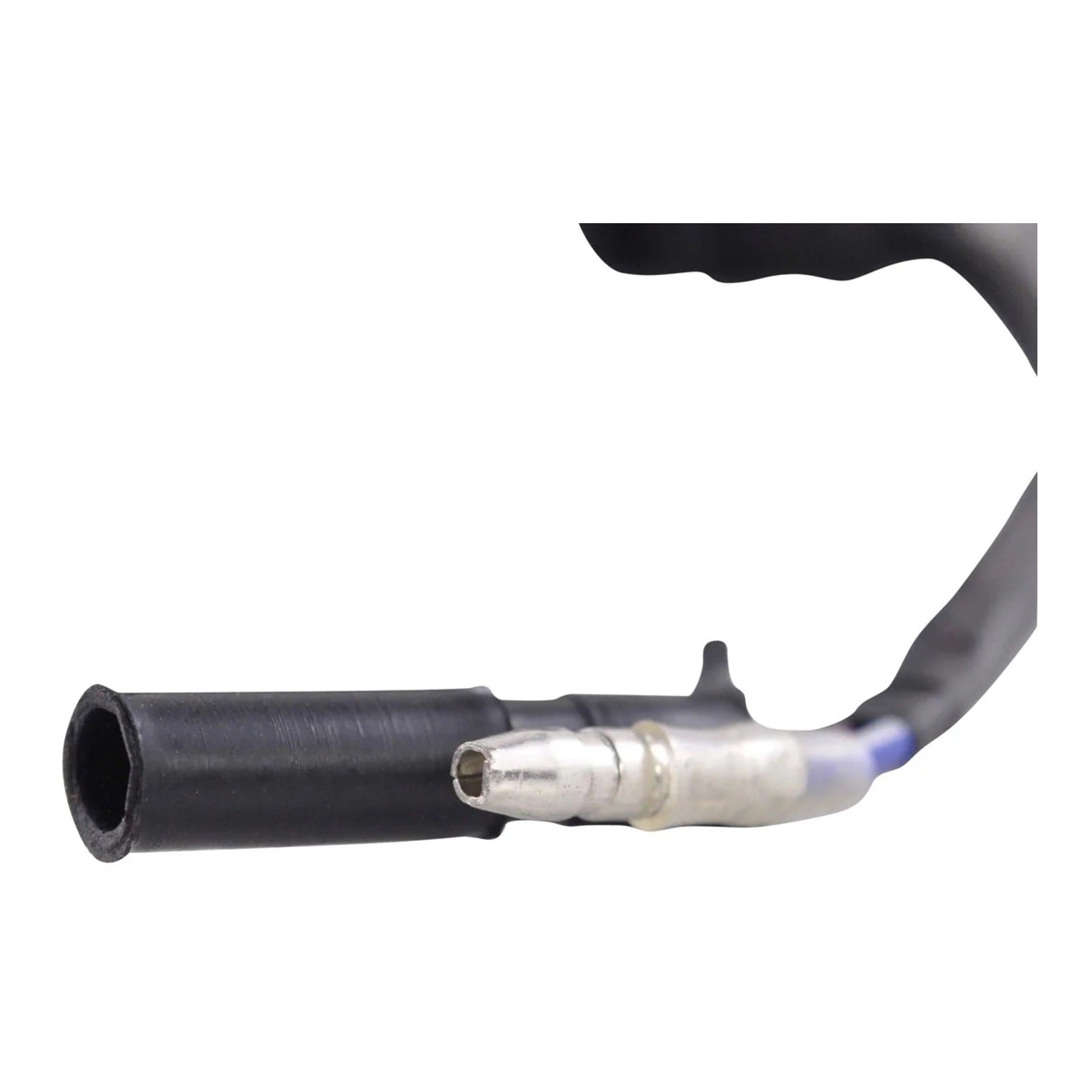

• Connector included.
• Rubber grommet included.
• All products shipped are tested.

Technical Data

Dimensions:

• Interior diameter: 29 mm
• Exterior diameter: 83 mm
• Thickness: 9 mm
• Length of wires stator to grommet: 40 mm
• Length of wires grommet to plug: 130 mm
• Length of pickup coil's wire to grommet: 60 mm

Other specifications:

• Number of wires: 2
• Number of plugs: 2
• Number of pins: 2

Wire-to-wire resistance:

• Pickup: Blue/Yellow to Bracket = 120 ohms +-20%
• Source: Black/Red to Ground = 715 ohms +-20%
